Bauxite production line and process solutions

Bauxite production line and process solutions

I. Solution Overview

Bauxite beneficiation production line and process solution provides a combined process of "washing - classification - flotation - magnetic separation" for different types of bauxite (alumina trihydrate, soft alumina monohydrate, hard alumina monohydrate). Through the design of multi-stage sorting, the aluminum-silicon ratio can be increased by 2-5 times, and the Al₂O₃ content of the concentrate is ≥50%, which can meet the demands of industries such as electrolytic aluminum and refractory materials.

Second, differentiated bauxite ore dressing process

1. Bauxite beneficiation process of trihydrate alumina type

   • Core process: washing - classification - flotation

   • Process characteristics:

     • High-pressure water gun washing (removing 80% clay)

     • Spiral classifier classification (+0.5mm/-0.5mm)

     • Ore slime flotation (oleic acid trap)

2. High silica type bauxite ore dressing process

   • Core process: grinding-flotation desilication

   • Key technology:

     • Stage grinding (up to -0.074mm 85%)

     • Combined chemicals (oleic acid:tarr oil:motor oil=1:1:1)

     • Sodium hexametaphosphate as dispersant

3. High iron type bauxite beneficiation process

   • Core process: magnetic separation-flotation combination

   • Equipment configuration:

     • High gradient magnetic separator (1.0-1.5T iron removal)

     • Reverse flotation desiliconization (sulfonate trap)

Third, bauxite production line core equipment system

Program Advantages

1. Customized design

   • Exclusive bauxite beneficiation process configured for different ore types

   • Can process raw ore with Al₂O₃ content of 30-55%.

   • Modularized design adapts to 50-10000t/d scale

2. Technological innovation

   • Compound flotation chemicals system

   • Magnetic separation-flotation synergistic iron removal technology

   • Ore washing water recycling system

3. Economic Benefits

   • 30% reduction of processing cost per ton of ore

   • Equipment life increased by 50%

   • Payback period <2 years

VI. Typical Alumina Production Line Configuration

1. Sanshui Aluminum Ore Production Line

   • Main equipment:

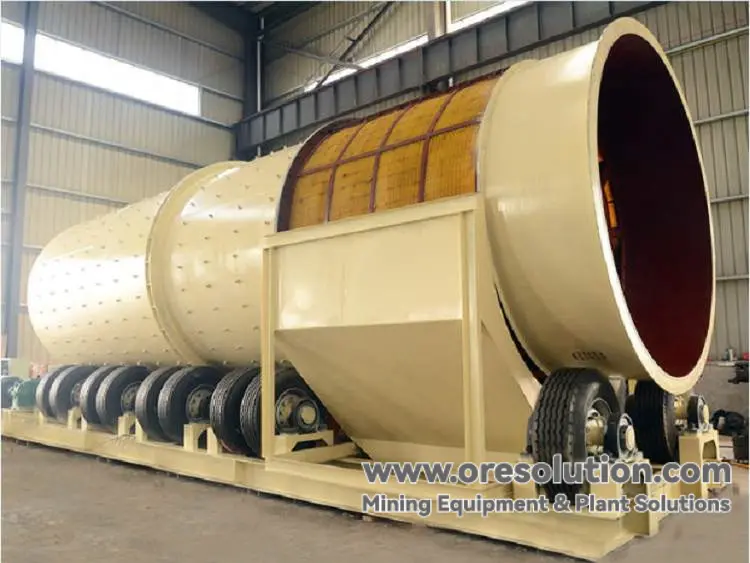

     • Rotary scrubber

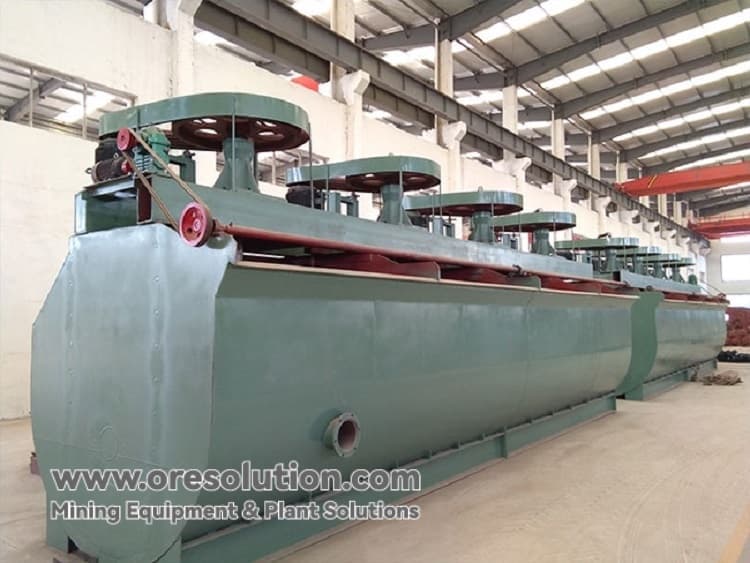

     • Flotation machine

2. 500t/d high silica type aluminum ore dressing production line

   • Innovation point:

     • Two-stage grinding and flotation process

     • Intelligent dosing system

VII. Technical Services

1. Aluminum ore experiment

   • Embedding Characteristics Study

   • Laboratory Flotation Tests

2. Production Support

   • Bauxite equipment supply

   • Bauxite production line equipment installation and commissioning guidance

   • Formulation optimization

   • Operator training

Welcome to inquire, we look forward to providing you with professional bauxite production line and process solutions and equipment configuration quotes!
