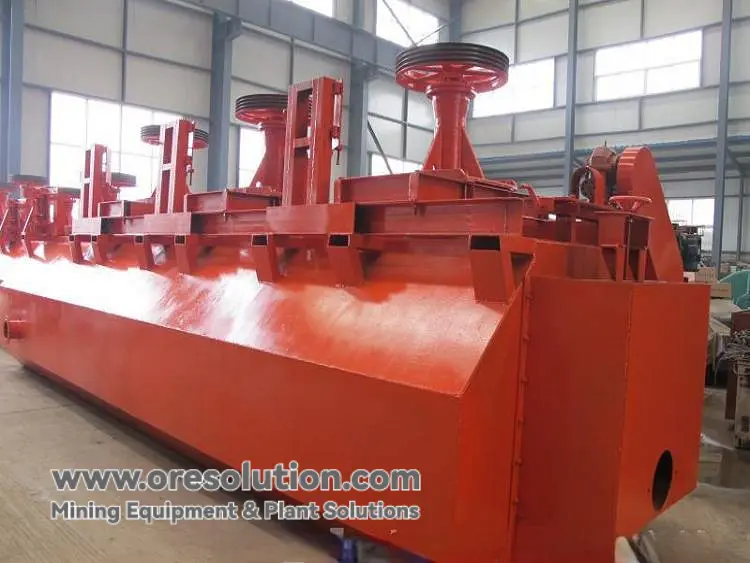

JJF type flotation machine-Self-absorbing mechanical agitation flotation machine equipment

Product Overview

Model JJF flotation machine is a highly efficient and energy-saving mechanical agitation flotation equipment, which adopts innovative false bottom and deflector design, which effectively solves the problems of sinking and stopping to discharge the ore in traditional flotation machine. With optimized impeller structure and umbrella-shaped dispersing cover, this equipment achieves the excellent performance of smooth liquid level and stable foam layer, which is especially suitable for forming a joint unit with SF type flotation machine to provide efficient flotation solutions for mineral processing plants.

Working Principle

1. Air-slurry mixing: Cylindrical impeller rotates and inhales air.

2. Slurry circulation: The guide tube guides the flow of slurry.

3. Mineral separation:

   • Hydrophobic minerals float on air bubbles.

   • Hydrophilic minerals remain in the slurry

4. Foam stabilization: Umbrella shaped dispersion hood stabilizes the foam layer

5. Slurry flow: Horizontal configuration system with SF type

Product features

JJF type flotation machine adopts cylindrical impeller design with shallow submergence depth and low circumferential speed, which ensures high recovery rate (1-2% higher than common type) and significantly reduces energy consumption. The unique false bottom and deflector structure of the equipment ensures that the slurry does not settle, and there is no need to drain the ore when stopping, which greatly improves the operation convenience. It is usually used in conjunction with SF type flotation machine to form a combined unit with complementary advantages to realize the optimal flotation effect.

Core Advantages

Structural Advantages

• False bottom and deflector design prevents sinking of the tank.

• Umbrella-shaped dispersing cover, stable liquid level

• Cylindrical impeller, long life

Performance Advantages

• High recovery rate (+1-2%)

• Low power consumption, large processing capacity

• Easy operation, low maintenance cost

Technical Parameters

Application Program

Combined unit configuration

• SF type: as a suction tank, self-absorbing slurry

• JJF type: as a DC tank, horizontal configuration

• Advantage: no drop, no foam pump

Specialized services

We provide JJF type flotation machine users:

• Combined unit design: optimized SF/JJF configuration scheme

• Installation and commissioning: professional team on-site service

• Operation training: complete training on the use of equipment

• Parts supply: original impeller and wear parts

• Process Optimization: Provide recovery improvement solutions

JJF type flotation machine has become the core equipment of the combined flotation unit due to its stable performance and high efficient separation effect. We are committed to providing high quality products and perfect service support to help users improve the benefits of mineral processing. Choosing our flotation machine is choosing reliable flotation solution and professional service guarantee.
