Bucket Elevator (Vertical Hoist)

The Bucket Elevator is the most efficient equipment for Vertical Lifting of bulk materials. It transports crushed ore, sand, coal, and cement from a low level to a high level (up to 40m) in a continuous stream.

With a fully enclosed housing, it ensures dust-free operation, making it ideal for feeding Storage Bins, Silos, and process equipment in mining and chemical plants.

Working Principle: Scooping & Lifting

A continuous loop of buckets lifting material against gravity.

Scooping

Material is fed into the bottom boot. The buckets scoop up the material as they pass around the tail pulley/sprocket. This "inflow feeding" minimizes crushing.

Lifting

The belt or chain carries the filled buckets vertically to the top head section. The enclosed casing prevents any spillage or dust escape.

Discharge

At the top head pulley, centrifugal force or gravity throws the material out of the buckets into the discharge chute, completing the cycle.

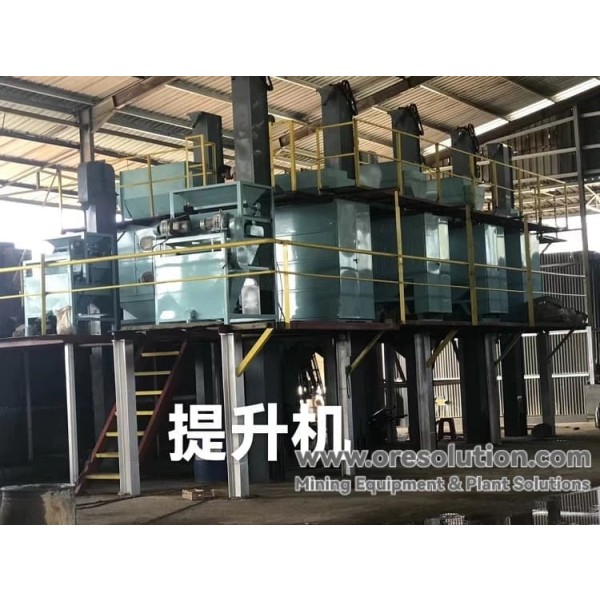

Bucket Elevator Hoist Structure

Technical Choice: Belt (TD) vs. Chain (TH/NE)

Which traction type suits your material?

Feature	Belt Type (TD Series)	Chain Type (TH/NE Series)
Traction Component	Rubber Belt.	Forged Ring Chain / Plate Chain.
Material Type	Powder, Light Granules.	Heavy, Lumpy, Abrasive.
Max Temperature	< 60°C (Standard).	Up to 250°C.
Discharge	Centrifugal (High Speed).	Gravity/Mixed (Low Speed).

Core Advantages

1. Space Saving

Compared to inclined belt conveyors, bucket elevators lift vertically, requiring minimal ground space. Perfect for compact plant layouts.

2. High Lifting Height

Capable of lifting material up to 40 meters high stably. Ideal for filling top-level silos or feeding high-level screens.

3. Environmental Friendly

The fully sealed steel casing prevents dust pollution during transport, complying with environmental regulations.

Typical Applications

● Crusher Discharge:
Lifting crushed stone from Jaw Crusher to a vibrating screen for sizing.
● Storage Bin Feeding:
Filling high-level Fine Ore Bins before the ball mill circuit.
● Cement Plant:
Handling raw meal, clinker, and cement powder. Chain elevators are preferred for hot clinker.
● Grain & Food:
Gentle handling of grain, rice, and flour using belt elevators with plastic buckets.

Technical Parameters (Common Models)

Model	Type	Bucket Width (mm)	Capacity (m³/h)	Max Height (m)
TD-160	Belt	160	15	30
TD-250	Belt	250	25	30
TD-315	Belt	315	38	35
TH-315	Ring Chain	315	35 - 45	40
TH-400	Ring Chain	400	55 - 75	40
NE-50	Plate Chain	300	50	40
NE-100	Plate Chain	400	100	40

Frequently Asked Questions (FAQ)

Q: Belt or Chain: Which should I choose?

A: For light, dry powder (grain, cement powder) and lift height < 30m, choose Belt (TD). For heavy, abrasive, or hot material (ore, clinker) and height > 30m, choose Chain (TH/NE).

Q: How do I prevent bucket jamming?

A: Ensure uniform feeding (use a feeder). Do not feed larger lumps than the bucket capacity allows. The NE series (Plate Chain) uses "inflow feeding" which prevents jamming better than dredging feeding.

Q: Is it difficult to maintain?

A: Maintenance is minimal. Regularly check the belt/chain tension and lubricate the head/tail bearings. The casing has inspection doors for easy access.

Vertical Transport Made Easy

Save floor space and reduce dust with OreSolution Bucket Elevator.
Contact us for model selection and height customization.
