Submarine Tin Alluvial Ore Production Line Solution is a specialized system for offshore mining and beneficiation.

This solution adopts a logistic model of "Offshore Pre-treatment + Onshore Purification". It integrates high-power sand pumping, shipboard screening, and jigging to process massive volumes (up to 1500t/h), reducing logistics costs by 60%.

What Is Submarine Tin Mining?

Submarine Alluvial Tin Mining involves extracting Cassiterite (Tin ore) from the seabed. Unlike land mining, space on the mining vessel is limited. Therefore, the process focuses on Volume Reduction: discarding 90% of waste sand at sea using compact Jigs, and transporting only the heavy rough concentrate to land for final cleaning.

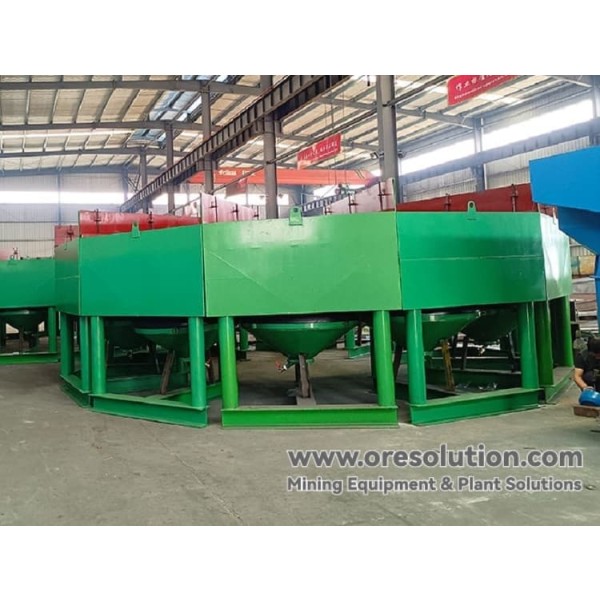

Submarine Tin Mining Jig Machine

Submarine Tin Beneficiation Process

Phase 1: Marine Operation (Shipboard)

Goal: Massive volume reduction and roughing.

Extraction: High-power Sand Pumps extract seabed material.
Screening: Trommel Screen removes large coral reefs, shells, and gravel.
Roughing: Jig Machines (Circular or Sawtooth) separate heavy tin minerals from light sea sand. Waste sand is discharged back to the sea.

Submarine Tin Ore Process Flow Chart

Phase 2: Land-based Operation (Onshore)

Goal: Final purification to market grade.

Transport: Rough concentrate is barged to the shore plant.
Concentration: Shaking Tables provide precise separation to upgrade tin content to ≥ 60%.
Tailings: Onshore tailings can be dry-stacked or treated.

Sea vs. Land Operation Division

Function	Shipboard Plant	Land Plant
Objective	Discard 90% Waste	Upgrade Concentrate
Core Equipment	Trommel, Jig	Shaking Table, Magnetic Sep
Key Constraint	Space & Stability	Precision
Processing Cap	Very High (1000t/h+)	Medium (50-100t/h)

Core Equipment Configuration

System	Main Equipment	Features
Sand Pumping	High-Power Sand Pump	Wear-resistant, high head.
Screening	Marine Trommel Screen	Corrosion-resistant, heavy duty.
Coarse Roughing	Circular Jig	Handles 5-10mm particles.
Fine Roughing	Sawtooth Wave Jig	Handles 0.5-5mm particles.
Concentration	6-S Shaking Table	High enrichment ratio.

Success Stories & Data

Project: Southeast Asia Submarine Tin Mine

A large-scale project utilizing our custom shipboard plant design.

Capacity: 10,000 tons/day.
Ore Type: Seabed Alluvial Sand.
Result: Reduced transport costs by 60% by discarding waste at sea.

Offshore Mining Platform

Frequently Asked Questions (FAQ)

Q1: How do you handle corrosion?

A: Seawater is highly corrosive. All our shipboard equipment (Trommels, Jigs) is treated with specialized marine-grade anti-corrosion paints and utilizes stainless steel or rubber linings where applicable.

Q2: Why use Jigs on the ship instead of Spirals?

A: Jigs are more compact per ton of capacity and handle the swaying motion of a ship better than Spiral Chutes, which require a stable level to operate efficiently.

Q3: Can this system handle varying weather conditions?

A: Yes. The modular shipboard system is designed with stability in mind to withstand wind and waves typical of offshore operations.

Get Your Custom Offshore Mining Plant

We have extensive experience in Southeast Asian submarine tin projects.
Contact us for a professional marine mining solution and quotation.
