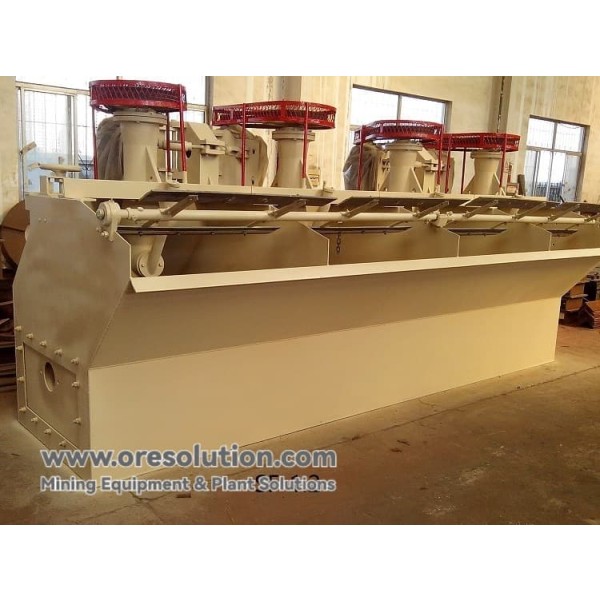

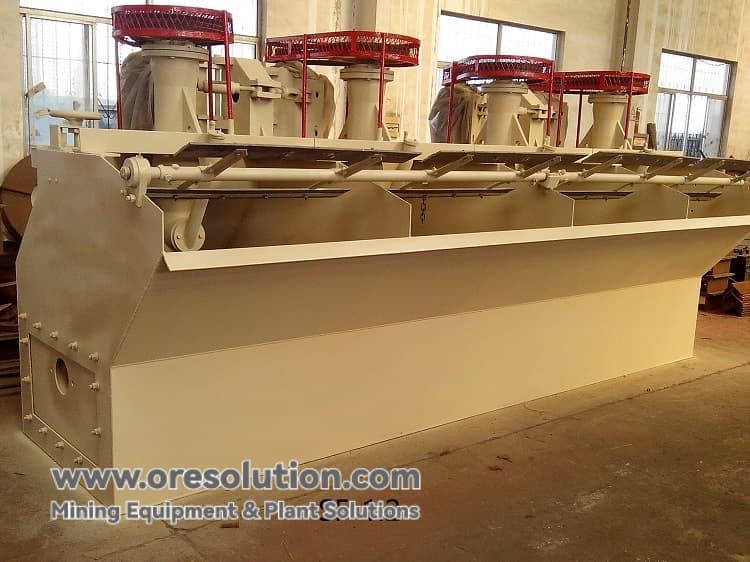

SF type flotation machine-Self-absorbing mechanical agitation flotation equipment

Product Overview

Model SF flotation machine is a highly efficient and energy-saving self-absorption mechanical agitation flotation equipment, which adopts innovative forward tilting tank design and double-blade impeller structure, which significantly improves the recovery effect of coarse-grained minerals. The equipment has outstanding advantages such as large suction capacity, low energy consumption, not easy to sink the tank, etc. It is especially suitable for separating and selecting fine-grained embedded non-ferrous, ferrous and non-metallic minerals, and is one of the core equipments in modernized mineral processing plant.

Product features

SF type flotation machine realizes the effective suspension and recovery of coarse-grained minerals through the unique double-circulation slurry flow mode. The optimized impeller design reduces the circumferential speed while ensuring full agitation, which significantly extends the service life of the impeller and cover plate. The equipment adopts horizontal arrangement, without additional foam pumps, which simplifies the process, reduces investment and operating costs, and provides users with cost-effective flotation solutions.

Working Principle

1. Slurry Preparation: Ground ore and chemicals are made into slurry.

2. Gas slurry mixing:

   • Double-blade impeller strong mixing

   • Inhalation of air to form fine bubbles

3. Mineralization separation:

   • Hydrophobic minerals float on air bubbles.

   • Hydrophilic minerals remain in the slurry

4. Foam collection:

   • Forward tilting tank promotes forward return of foam

   • Scraper discharges the mineralized foam layer

Core Advantages

Structural Advantages

• Forward tilting tank design prevents sinking of the tank.

• Double-blade impeller, strong mixing force

• Horizontal configuration, no need for foam pump

Performance Advantages

• Good recovery of coarse-grained minerals

• Long impeller life, low maintenance cost

• Low energy consumption, large processing capacity

Technical Parameters

Application fields

• Non-ferrous metals: copper, lead, zinc ore selection

• Ferrous metals: iron ore, titanium ore sorting

• Non-metallic minerals: fluorite, barite sorting

• Rare metals: lithium, beryllium ore recovery

Professional Services

We provide a full range of technical support for SF type flotation machine users:

• Process design: optimize the flow according to the characteristics of the ore

• Installation and commissioning: professional team on-site service

• Operation training: complete training on the use of equipment

• Spare parts supply: original impeller and wear parts

• Optimization of indexes: provide solutions to improve the efficiency of separation

SF type flotation machine has become an important equipment for modern ore dressing with its excellent coarse grain recovery performance and economic operation cost.
