Barite production line and process solutions

Barite beneficiation production line and process solutions

I. Program Overview

As an important non-metallic mineral resource, barite (BaSO₄) has a wide range of applications in oil drilling, chemical raw materials, fillers and other fields. For different grades of barite ore, we provide three main barite beneficiation process solutions: gravity separation, magnetic separation and flotation, which can be flexibly combined and applied according to the characteristics of the ore and product requirements. Through the optimization of barite process design, we can achieve high quality products with BaSO₄ content ≥95% and whiteness ≥90%.

Second, barite beneficiation process flow

1. Gravity beneficiation dominant process

   • Applicable conditions:

     • Coarse grain embedded (+0.5mm)

     • BaSO₄content≥30%

   • Process flow:

     • Two-stage crushing (jaw + cone)

     • Circular vibrating screen classification

     • Jigging separation (coarse and fine grains are treated separately)

   • Technical index:

     • Concentrate BaSO₄≥85

2. Magnetic separation and iron removal process

   • Applicable conditions:

     • Iron-containing impurities (rhodochrosite, etc.)

     • Pharmaceutical grade product requirements

   • Process Flow:

     • Wet high gradient magnetic separation (1.0-1.5T)

     • Multi-stage magnetic separation and purification

   • Iron removal effect:

     • Fe₂O₃content≤0.5%

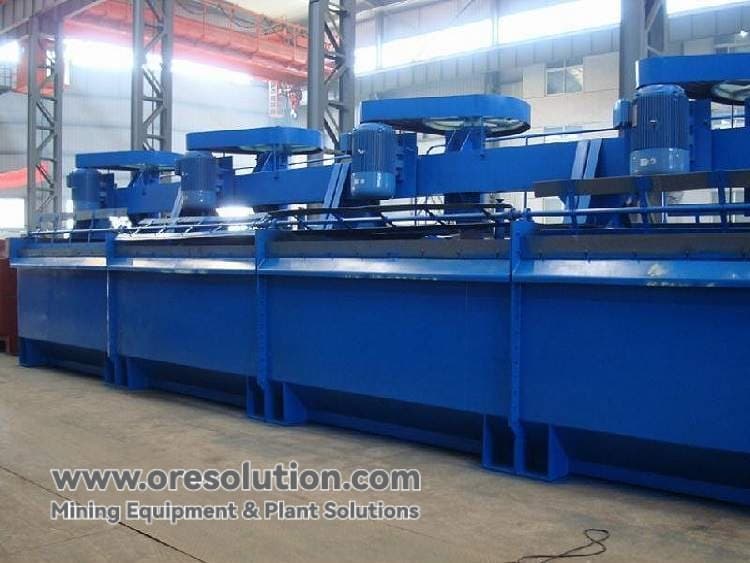

3. Flotation purification process

   • Applicable conditions:

     • Fine-grained embedded (-0.074mm)

     • Low-grade ore (BaSO₄ 8-15%)

   • Pharmacy system:

     • Anionic capture agent (fatty acids)

     • Cationic recovery agent (amine)

   • Technical specifications:

     • Concentrate BaSO₄ ≥95%

Third, barite beneficiation production line equipment configuration program

Barite production line program advantages

1. Flexible Configuration

   • Single or combined process can be selected according to the nature of the ore.

   • Processing scale 50-10000t/d adjustable

   • Modular design for easy expansion

2. Quality Assurance

   • Pharmaceutical grade product Fe₂O₃≤0.5%

   • Specific gravity of petroleum grade product≥4.2

   • Filler grade product whiteness ≥90%.

3. Economic Benefits

   • Payback period of gravity separation process <1 year

   • Flotation tailings can be comprehensively utilized

   • Low running cost of equipment

Production Example

A barite tailings recovery project

• Properties of raw ore: BaSO₄ content of 12%, -200 mesh accounts for 80%

• Process: flotation method (one coarse, three fine, two sweep)

• Production index:

  • Concentrate BaSO₄96.5%

  • Recovery rate 81

  • Annual processing capacity of 80,000 tons

VII. Barite Beneficiation Technical Services

1. Ore evaluation

   • Incoming sample testing

   • Barite selectivity test

2. Engineering Design

   • Barite beneficiation process design

   • Barite production line equipment selection and configuration

   • Plant layout planning and drawing design

3. Production Support

   • Barite equipment production and supply

   • Barite equipment installation and commissioning guidance

   • Operator training

   • After-sales service

If you need to get consulting barite production line and process solutions or make project technical consultation, please leave us a message, we will contact you and configure the best barite beneficiation production line program and quotation for you.
