Gold ore CIL production line and process flow solution

Gold Ore Carbon Immersion Leaching (CIL) Production Line and High Grade Gold Ore or Gold Ore Leaching Process Containing Accompanying Silver and Copper Technology Details

I. Overview of gold CIL process

Gold CIL process is an advanced gold extraction technology that synchronizes cyanide leaching with activated carbon adsorption. The CIL production line and process flow solution for gold mine significantly improves the gold recovery rate and reduces the production cost by simultaneous dissolution and adsorption of gold in the leaching tank, which is especially suitable for the development of high-grade gold ore and gold ore resources containing associated silver and copper.

Second, gold ore CIL leaching process flow details

1. Ore preparation system

• Crushing section:

  • Adopt two sections and one closed circuit crushing process

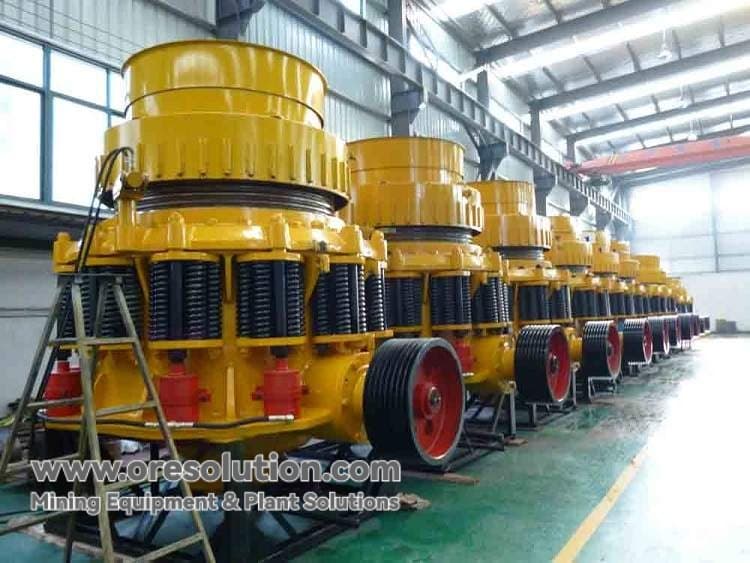

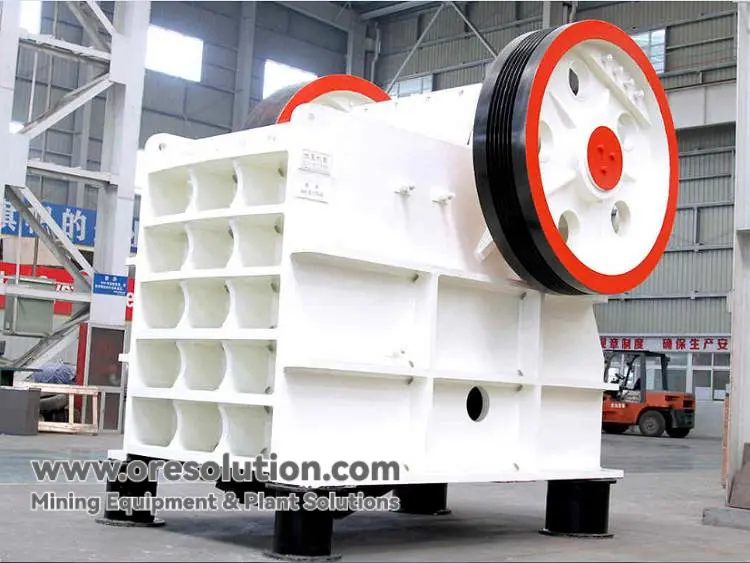

  • Equipped with jaw crusher + cone crusher combination

• Grinding and Classification:

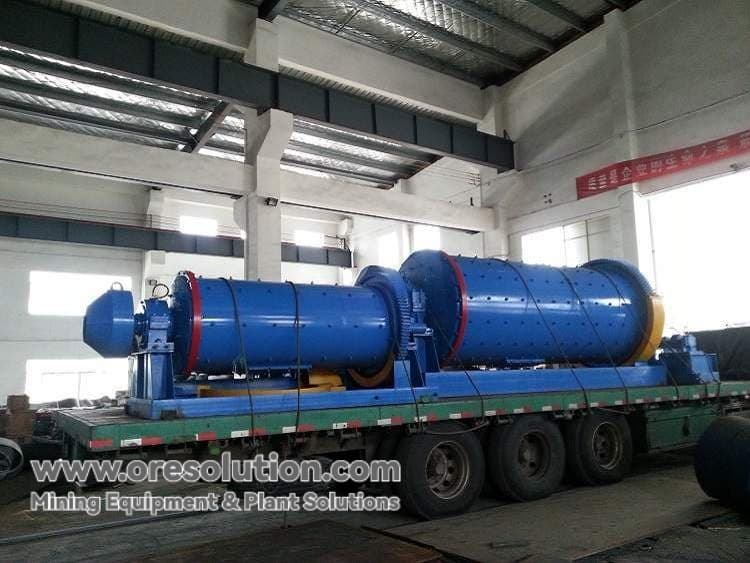

  • Ball mill and hydrocyclone form a closed-circuit system.

  • Strictly control the grinding fineness

2. Leaching adsorption system

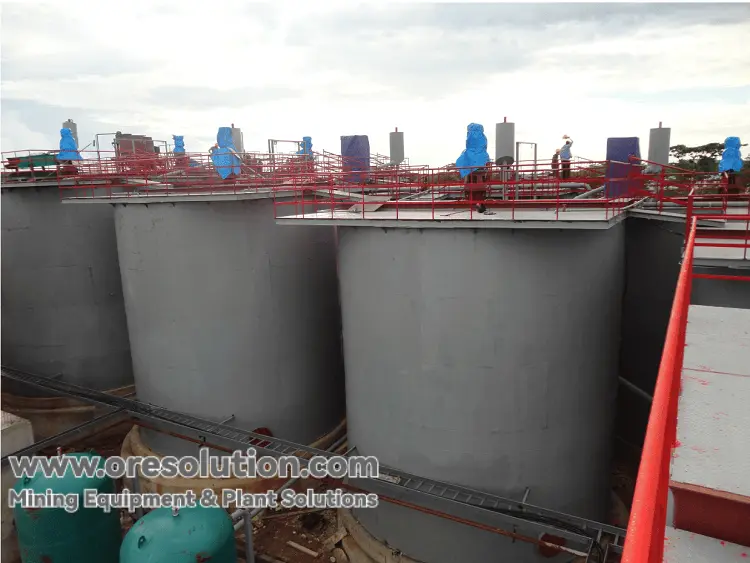

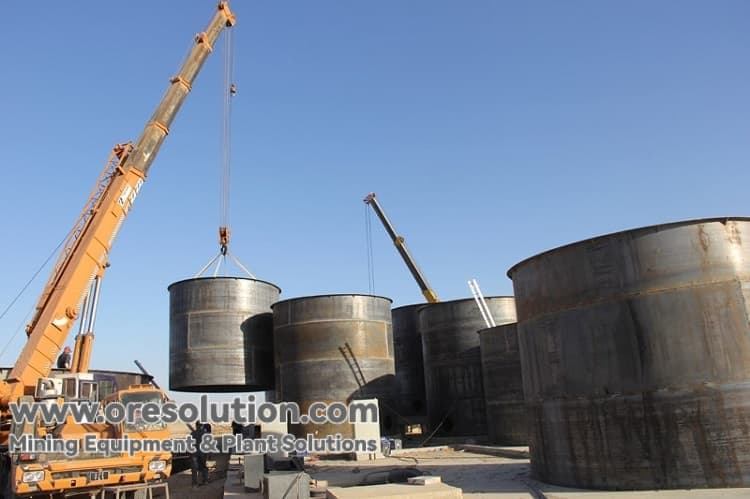

• Stepped leaching tank set:

  • 9 sets of leaching tanks are arranged in series, the first 2 sets are dedicated to cyanide leaching.

  • The last 6-7 units are synchronized for leaching and adsorption.

• Activated carbon adsorption:

  • Imported coconut shell activated carbon

  • Counter-current adsorption design to improve efficiency

• Slurry circulation:

  • Central inflatable lifting tube technology

  • Reduce energy consumption by 70%.

3. Gold-containing carbon treatment system

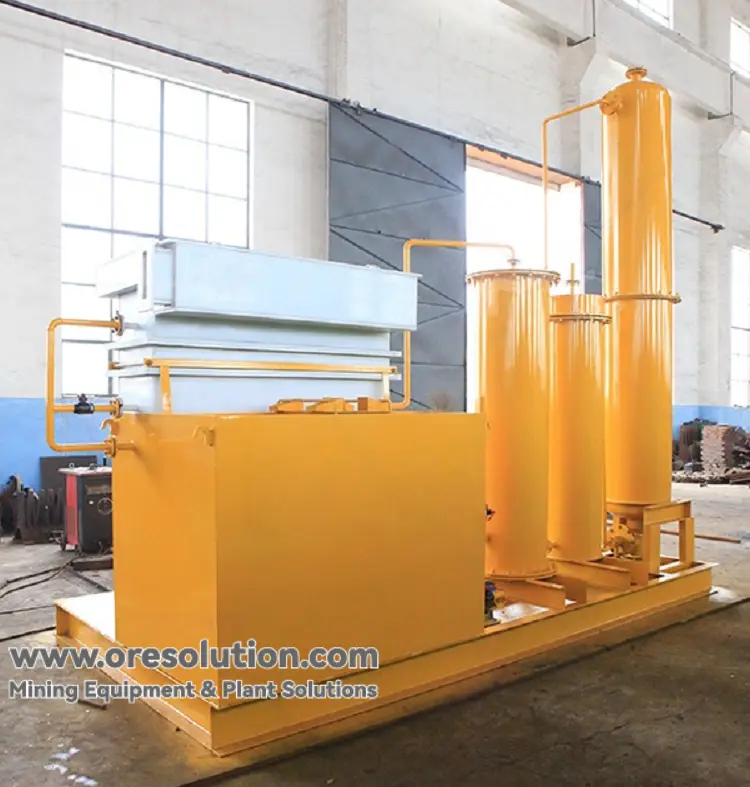

• Desorption electrolysis:

  • High temperature and high pressure desorption (150℃, 0.5MPa)

  • Desorption time is only 2-6 hours

  • Desorption rate as high as 99

• Carbon regeneration:

  • Acid washing + thermal regeneration process

  • Ensure the recycling of activated carbon

4. Precious metal recovery system

• Electrolytic deposition:

  • Highly efficient recovery of gold and silver from precious liquid

  • Purity of cathodic gold reaches 99.9%.

• Melting and casting:

  • Produce standard gold ingot

Third, gold CIL production line and process technology advantages

1. Remarkable economic benefits:

   • Save 66% investment than traditional CCD process

   • Reduce capital backlog and accelerate turnover

   • Increase the recovery rate of associated metals

2. High efficiency and energy saving:

   • Simultaneous leaching and adsorption

   • 70% energy saving in centralized filling system

   • High-temperature and high-pressure rapid desorption

3. Environmentally safe:

   • Closed system design

   • High recycling rate of activated carbon

   • Wastewater treatment meets the standard discharge

4. Intelligent control:

   • Automated process control

   • Online monitoring of key parameters

   • Digital management system

IV. Key Equipment Configuration of Gold CIL Production Line

V. Example analysis of gold mine CIL production line

A large-scale gold mine CIL project (100,000 tons/month):

• Raw ore grade: 7.5g/t

• Process flow:

  • Two stages and one closed circuit crushing

  • Ball milling + cyclone classification

  • 9 step leaching tanks

  • High temperature and high pressure desorption

• Operation index:

  • Gold recovery rate: >95%

  • Saving investment of 486,000 dollars compared with CIP process

  • Reduce capital backlog by 201.7 thousand dollars

Sixth, technical service support

Provide a full range of gold CIL production line and process solutions:

1. Pilot study:

   • Ore leachability test

   • Adsorption kinetics testing

2. Engineering design:

   • Gold CIL leaching process optimization

   • Calculation of equipment selection for gold CIL production line

3. Production Support:

   • Operator training

   • Optimization of production parameters

4. Environmental Protection Program:

   • Cyanide degradation treatment

   • Comprehensive utilization of tailings

VII. Recommendations for selection of CIL process solutions for gold ores

1. Applicable ore type:

   • High grade gold ore

   • Gold ore containing associated silver and copper

2. Investment Benefit Analysis:

   • The larger the processing capacity, the more significant the economic benefits

   • Short payback period

For detailed gold CIL production line and process flow solutions or project technical consultation, please contact ourprofessional team ofgold beneficiation, we will configure the best gold CIL production line program and quotation for you.
