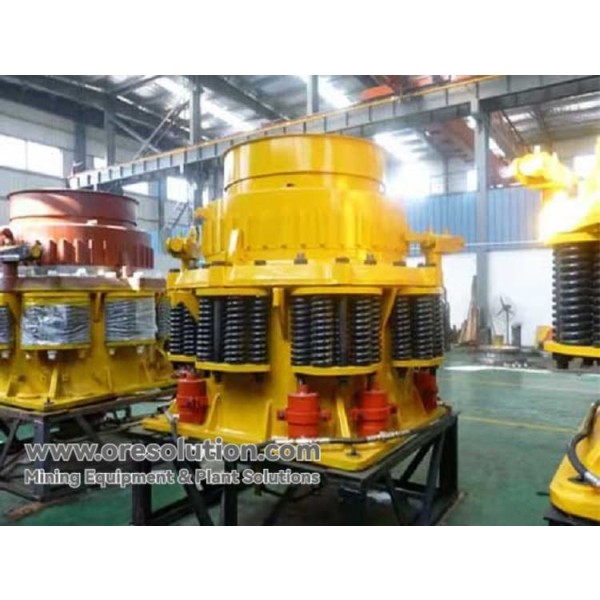

Cone Crusher

⏰ 24/7 Online · Free Consultation!

📞 +86 199 1475 4015 (WeChat/WhatsApp)

Submit your inquiry now to receive a customized solution and quote!

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Product Details

High-Efficiency Cone Crusher (Hard Rock Expert)

Cone Crusher is the "King of Hard Rock Crushing". It utilizes the Lamination Crushing Principle to process hard and abrasive ores like Granite, Basalt, Iron Ore, and River Pebbles.

OreSolution offers both classic PY Series Spring Cone Crusher and modern Hydraulic Cone Crusher. Featuring an intelligent hydraulic clearing system and overload protection, it ensures continuous high-yield production.

Suitable for hard and abrasive materials with compressive strength up to 300 MPa.

Working Principle: Lamination Crushing

Unlike impact crushers, Cone Crushers crush rock by squeezing it between an eccentrically gyrating mantle and a concave.

Feeding

Material from the Jaw Crusher enters the crushing chamber uniformly through the distribution plate.

Uniform feeding is critical to prevent uneven wear on the mantle and concave.

Lamination Crushing

The Mantle (Moving Cone) gyrates eccentrically. Rocks are squeezed not only against the wall but also against each other , producing a finer and more cubic product.

Discharging

Crushed material falls freely when the mantle swings away. The product is then sent to the Vibrating Screen or Ball Mill.

Structure of Cone Crusher

Technical Choice: Spring vs. Hydraulic Cone

We offer different types of Cone Crushers. Which one fits your budget and capacity?

Feature	PY Spring Cone Crusher	Hydraulic Cone Crusher
Technology	Traditional Spring Release.	Advanced Hydraulic Cylinder.
Automation	Manual Adjustment.	Fully Automatic (PLC).
Clearing Chamber	Difficult (Time-consuming).	Instant Hydraulic Clearing.
Cost	Lower Investment.	Higher Performance.

Core Advantages

1. Intelligent Protection

The hydraulic safety system automatically releases iron or unbreakable materials from the crushing chamber, preventing machine damage and reducing downtime.

2. High Crushing Efficiency

The combination of high swing frequency and optimized cavity shape results in higher capacity and finer end products.

3. Versatile Cavity Types

We provide three cavity types: Standard (PYB) for medium crushing, Medium (PYZ) for fine crushing, and Short Head (PYD) for ultra-fine crushing.

Cone Crusher Working Site

Typical Applications

● Hard Rock Mining:
Fine crushing of Granite, Basalt, Iron Ore for Ball Mill preparation.
● Sand Making:
Producing manufactured sand from River Pebbles.
● Construction Aggregate:
Providing high-quality aggregate for concrete and asphalt.
● Metallurgical Slag:
Crushing steel slag for resource recycling.

Technical Parameters

Model	Cone Dia. (mm)	Max Feed (mm)	Output Range (mm)	Capacity (t/h)	Power (kW)
PYB-600	600	65	12 - 25	40	30
PYD-600	600	35	3 - 13	23	30
PYB-900	900	115	15 - 50	50 - 90	55
PYZ-900	900	60	5 - 20	20 - 65	55
PYB-1200	1200	145	20 - 50	110 - 168	110
PYB-1750	1750	215	25 - 50	280 - 480	160
PYB-2200	2200	300	30 - 60	590 - 1000	260 - 280

Full Lifecycle Support

1. Selection Consulting
Choosing the right cavity type (Standard/Medium/Short Head).

2. Installation
Engineers guide the installation of the hydraulic system.

3. Operation Training
Training on how to use the PLC intelligent control system.

4. Spare Parts
Supply of High Manganese Mantle and Concave.

Frequently Asked Questions (FAQ)

Q: What is the difference between PYB, PYZ, and PYD?

A: They represent different crushing chambers. PYB (Standard) is for secondary crushing (coarser output). PYZ (Medium) is for medium crushing. PYD (Short Head) is for fine crushing (finer output).

Q: Can it handle iron material entering the chamber?

A: Yes. Our Cone Crusher is equipped with a Spring or Hydraulic safety system. When unbreakable material (like iron) enters, the support sleeve lifts up to let it pass through without damaging the machine.

Q: Can the cone crusher handle wet or muddy materials?

A: Cone crushers perform best with dry or slightly moist materials. High moisture or sticky clay may reduce crushing efficiency and cause blockage. Pre-screening is recommended.
