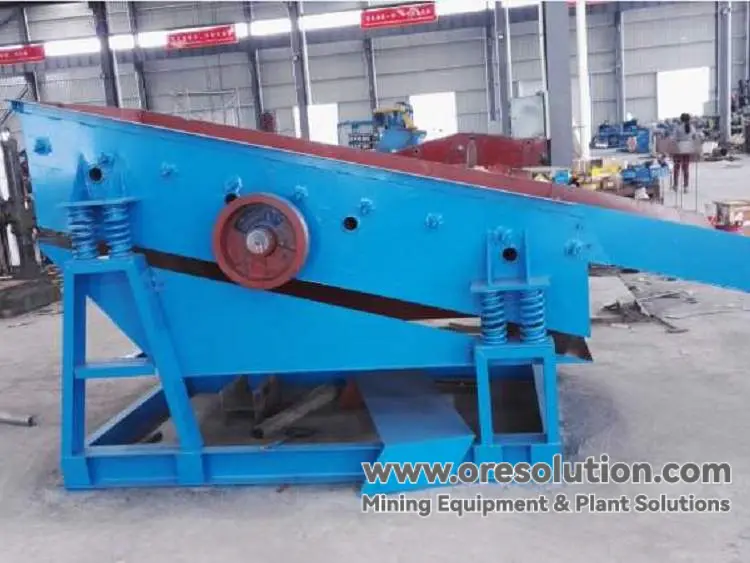

circular vibrating screen

Product Overview

Circular vibrating screen is a kind of advanced screening equipment adopting elliptical vibration trajectory, specially designed for mining, building materials, coal and other industries, featuring large handling capacity, accurate grading and stable operation. Its unique cylinder type eccentric shaft exciter and spring damping system make it keep low noise and long life while screening efficiently, which is the core equipment of modern crushing and screening production line.

Technological innovation design

High-efficiency vibration system

• Elliptical vibration track: better throwing angle of material, screening efficiency increased by 30%.

• Double eccentric block adjustment: the amplitude can be adjusted steplessly between 3-8mm, adapting to different materials.

• Frequency control (optional): adjustable vibration frequency from 800-1500rpm.

Durable structure design

• Riveted frame: fatigue strength increased by 50%, life expectancy of more than 10 years.

• Composite spring system: vibration damping efficiency >90%, foundation force reduction of 60%.

• Modular screen: quick-disassembly design, 70% shorter replacement time.

Six core advantages

1. Intelligent classification

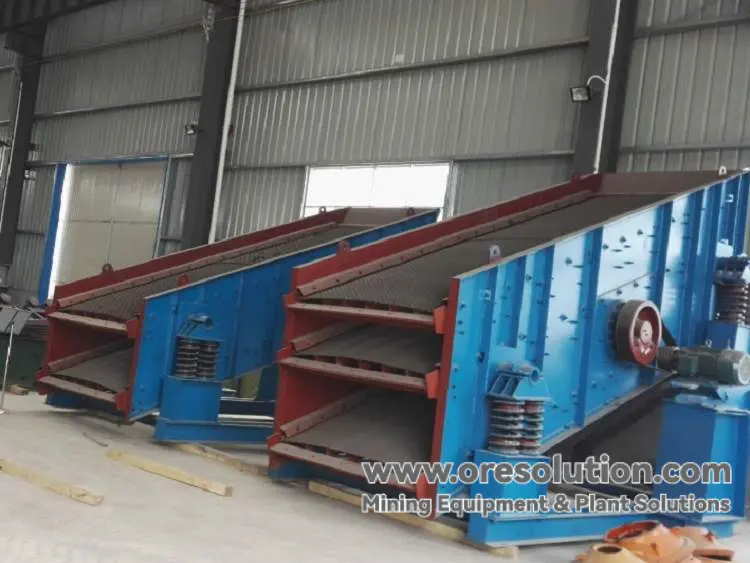

   • Multi-layer screen design, one-time completion of 2-4 levels of classification

   • Wet sieve mode (optional spraying system) to solve the sticky material clogging.

2. Military quality

   • Bearing adopts SKF/NSK brand, with a life span of more than 30,000 hours.

   • Manganese steel woven mesh or rubber composite plate is optional.

3. Energy saving and environmental protection

   • Energy consumption is 25% lower than traditional equipment

   • Noise <75dB, in line with industrial environmental standards

4. Convenient maintenance

   • External shaker design, maintenance without dismantling the machine.

   • Hydraulic lifting device (optional) is convenient for screen replacement.

5. Full Scenario Adaptation

   • Full range of applications, from coarse crushing to fine grinding.

   • Customized explosion-proof models for chemical industry

6. Intelligent Upgrade

   • Optional Internet of Things monitoring system for real-time monitoring of vibration, temperature and other parameters.

Industry Solutions

Mining

• Pre-screening before crushing

• Ball Mill Sand Return Control

• Tailings Dry Discharge Classification

Building Material Industry

• Aggregate grading (0-5/5-10/10-20mm)

• Mechanized sand and stone powder separation

Coal industry

• Raw coal classification (+50mm/-6mm)

• Coal washing plant media recovery
