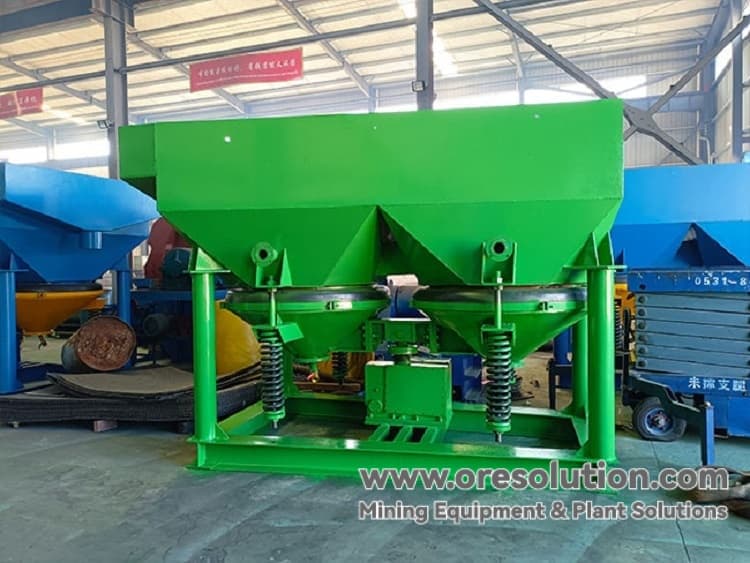

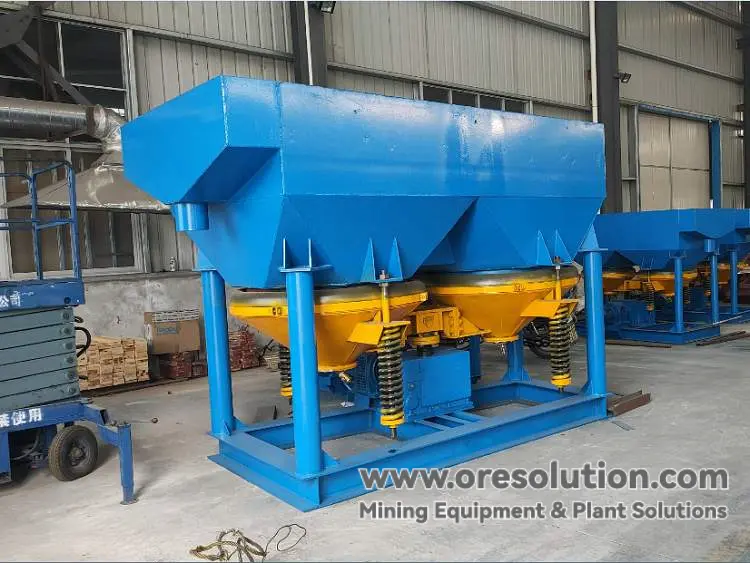

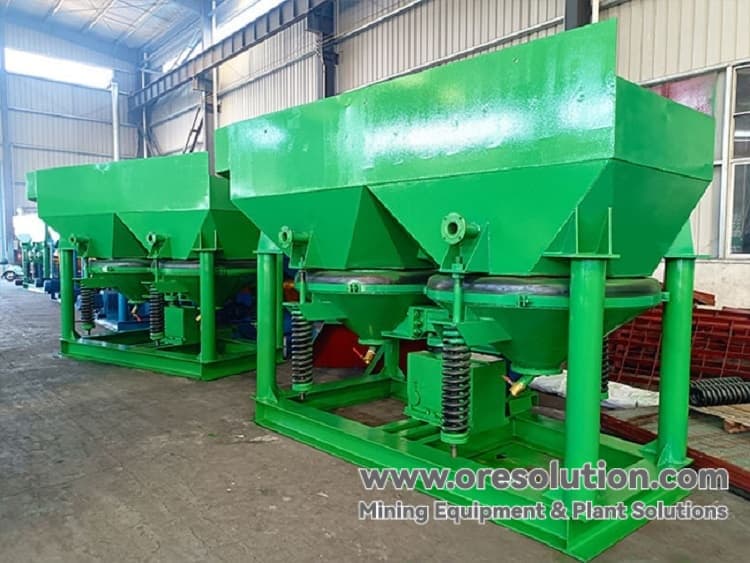

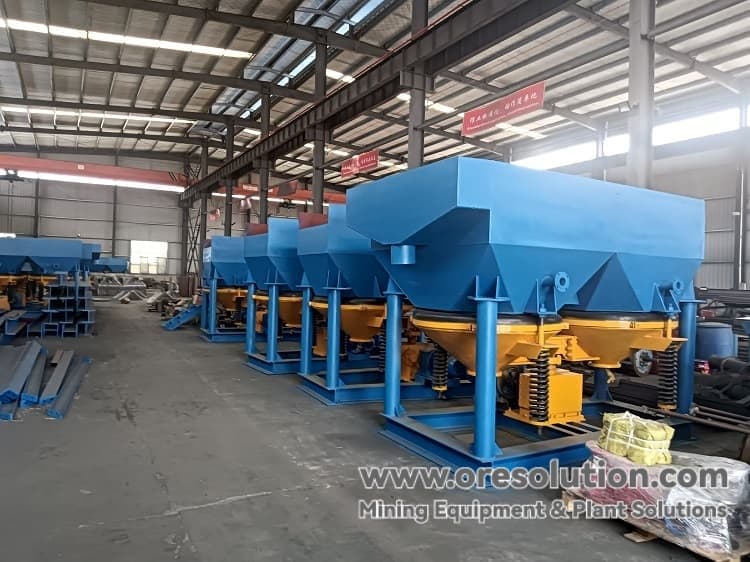

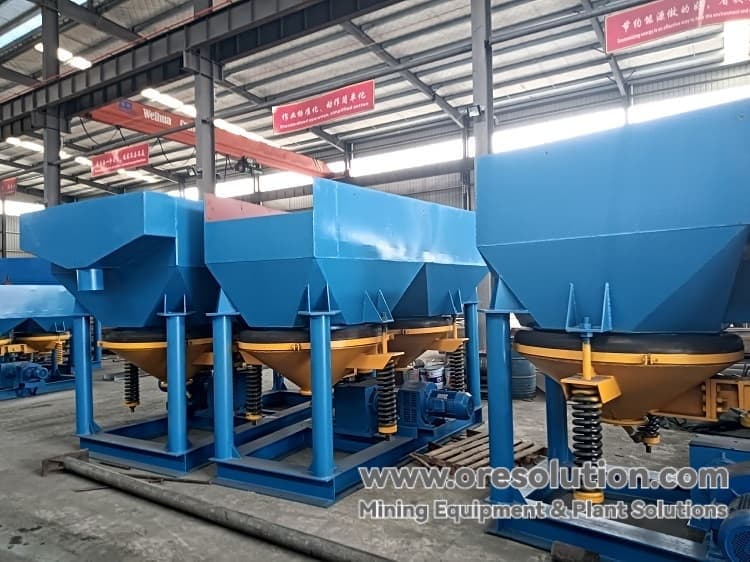

Sawtooth Wave Jigger--High Efficiency and Energy Saving Gravity Separation Equipment

Product Overview

Sawtooth wave jigger is a kind of advanced gravity separation equipment, which is widely used in the separation of alluvial gold, tin, tungsten, lead, zinc, antimony, manganese, diamond, iron ore and other minerals by virtue of its advantages of large capacity, wide range of sorting particle size and high recovery rate, etc. It is especially suitable for the separation of large-grained minerals such as barite ore, manganese ore and iron ore. Especially suitable for barite ore, manganese ore, iron ore and other large particles of minerals beneficiation, the maximum feed size of up to 30mm, and the use of sieve on sieve discharge mode, significantly reducing the sieve under the replenishment of water to improve the beneficiation efficiency.

Compared with the traditional sinusoidal wave jigger, the sawtooth wave jigger is driven by electromagnetic speed-regulating motor, and the jigging pulsation curve is in the form of sawtooth waveform, which makes the rising water flow fast and the falling water flow slow, optimizes the bed looseness, and significantly improves the settling efficiency of heavy minerals, so that the beneficiation indexes are significantly improved:
✅ Sn recovery rate increased by 3.01%.
✅ W recovery increased by 5.5%.
✅ 1.63% increase in Pb recovery
✅ Zn recovery increased by 2.04%.
✅ 30%-40% water saving
✅ Reduction of floor space by 1/3

With adjustable stroke and stepless speed regulation, the performance of this equipment has reached the domestic advanced level, and it is one of the most ideal energy-saving re-election equipment at present.

Product advantages and features

✔ High-efficiency sorting

• Sawtooth wave pulsation curve optimizes the stratification of ore particles, with high enrichment ratio and high recovery rate, especially suitable for fine-grained mineral sorting.

✔ Energy saving and environmental protection

• Compared with the traditional jigger, it saves 30%-40% of water and reduces the cost of mineral processing.

✔ Strong adaptability

• Wide range of processing particle size, maximum feed size 30mm, suitable for alluvial gold, tin, tungsten, lead, zinc, manganese, iron ore and other minerals.

✔ Intelligent adjustment

• Adjustable stroke, stepless speed regulation of stroke (driven by electromagnetic speed-regulating motor), adapting to the needs of different mineral separation.

✔ Stable operation

• Simple structure, easy to install, easy to operate, easy to maintain, low equipment failure rate, long service life.

✔ Wide application

• It is especially suitable for beneficiation of minerals such as manganese ore, barite, iron ore, alluvial gold, etc. It has excellent performance in gold mining ships and mines.

Applicable minerals range

• Precious metals: alluvial gold, silver ore

• Non-ferrous metals: tin, tungsten, lead, zinc, antimony

• Ferrous metals: manganese ore, iron ore, ilmenite ore

• Non-metallic minerals: barite, diamond, coal

Why choose sawtooth wave jigger?

1. Authoritative verification: domestic advanced technology, beneficiation index is better than traditional jigger.

2. Energy saving and high efficiency: save water and electricity, reduce operation cost.

3. Strong adaptability: applicable to a variety of minerals, especially suitable for large particle ore separation.

4. Intelligent adjustment: adjustable stroke and stroke times to optimize the sorting effect.
