Zircon sand beneficiation production line and process solution

Process Overview

Zircon sand beneficiation production line adopts the combined process route of "outdoor wet roughing + indoor dry concentrating", which is designed for zircon in beach sand ore and river alluvial sand ore. Through the combination of multi-stage gravity separation, magnetic separation and electrostatic beneficiation, this zircon sand production line can realize the efficient enrichment and purification of zircon sand, and the content of the final product ZrO₂ can be more than 65%.

Zircon sand beneficiation process

Outdoor wet rougher system

1. Pre-treatment section

   • Uniform feeding from silo

   • Tumbler screen classifying and removing impurities (2-5mm)

2. Gravity enrichment section

   • Spiral chute rougher (feed concentration 30-40%)

   • Spiral chute sweeping (15-20% increase in recovery)

3. Magnetic separation and iron removal section

   • Multi-roll wet magnetic separator (field strength 1200-8000 gauss)

   • Removal of ilmenite, garnet and other magnetic minerals

4. Shaking table selection section

   • 6-S shaking table selection

   • Produce coarse zircon sand concentrate (ZrO₂ 50-55%)

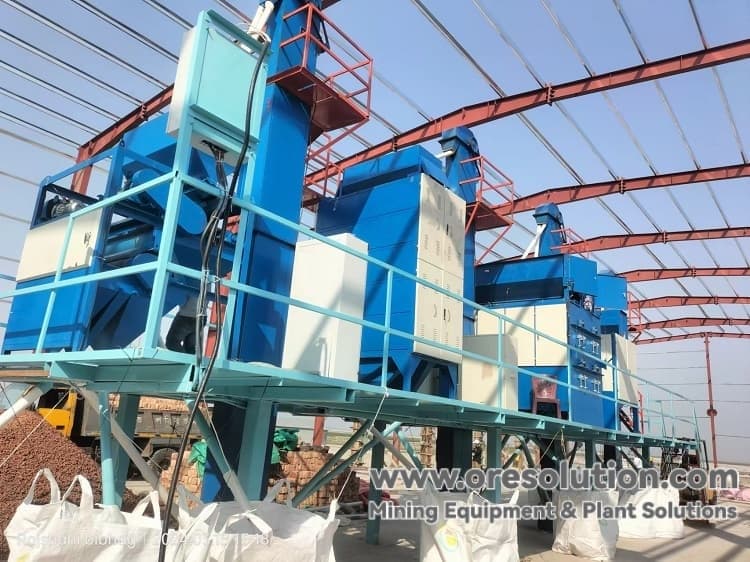

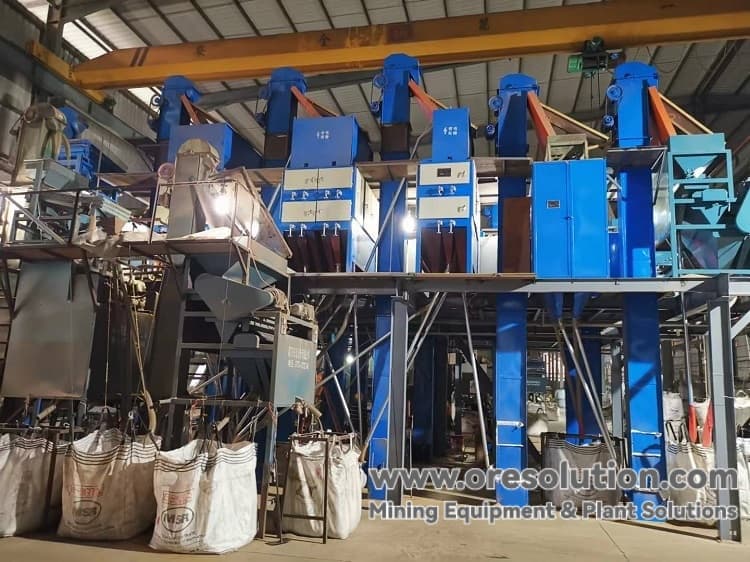

Indoor Dry Concentration System

1. Pre-treatment section

   • Silo buffer

   • Dryer

2. Magnetic separation section

   • Open circuit magnetic separator

   • Further removal of weakly magnetic minerals

3. Electrostatic separation and purification section

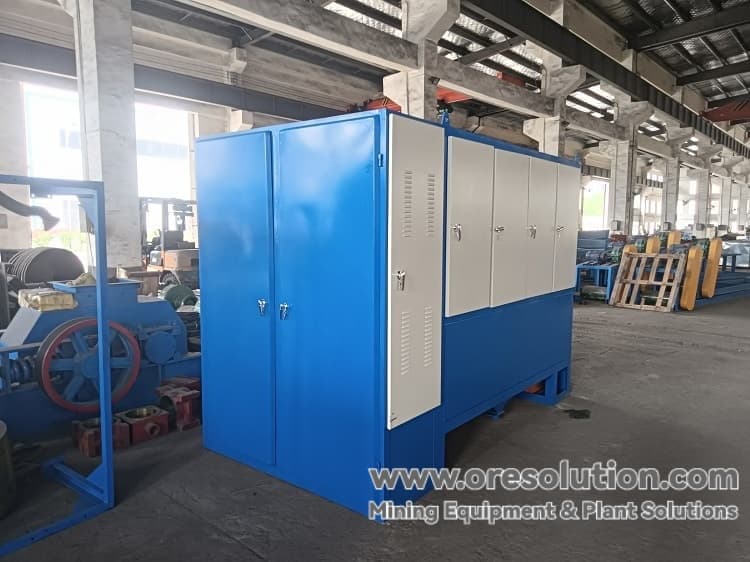

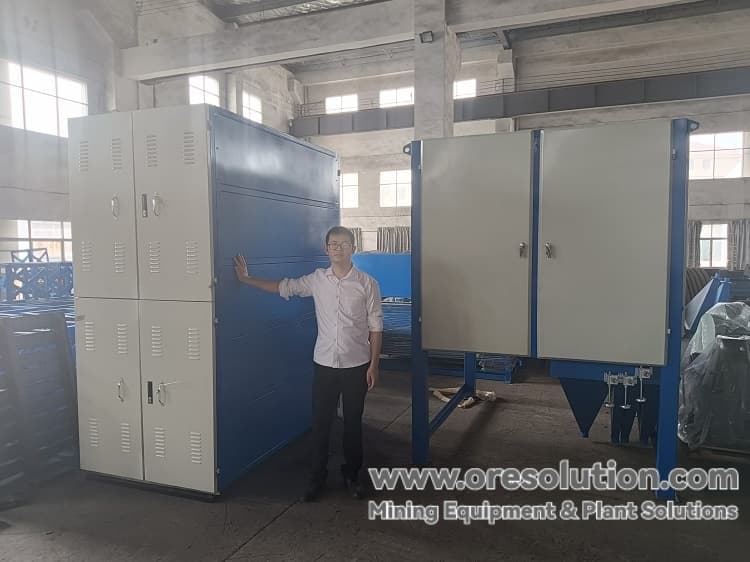

   • High voltage electrostatic separator

   • Arc Plate Electrostatic Separator (Refinement)

   • Specialized magnetic separator for zircon ore (final removal of impurities)

4. Finished product collection

   • High purity zircon sand concentrate (ZrO₂≥65%)

   • Tailings treatment system

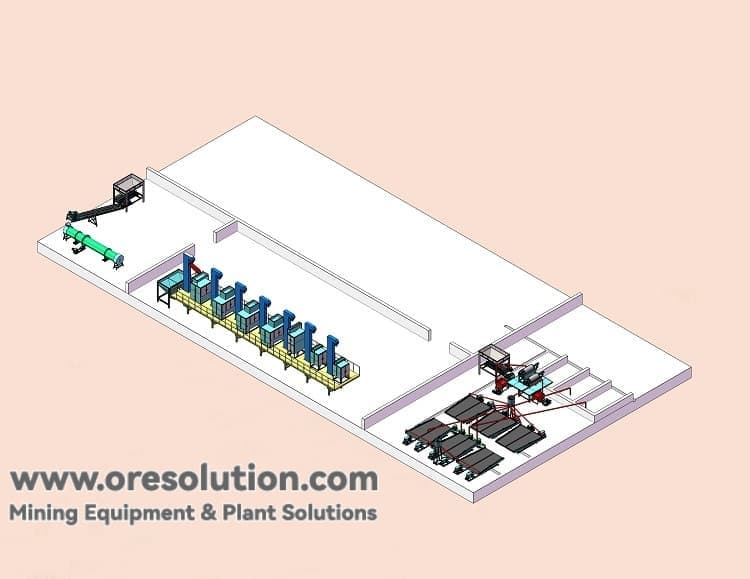

Main equipment configuration of zircon sand beneficiation production line

Wet rougher section equipment

Dry Concentration Section Equipment

Note: The specific parameters of the equipment can be customized according to the processing scale and production requirements.

Technical Advantages

1. High efficiency sorting

   • High recovery rate of combined process

   • Adaptable to the recovery of 0.1-0.5mm fine grains.

   • Final concentrate ZrO₂≥65%.

2. Energy saving and environmental protection

   • Wet section water recycling utilization rate >90

   • No chemical additives

3. Stable and reliable

   • Modularized design to adapt to different scales

   • Easy maintenance

Technical service

1. Pre-service

   • Zircon sand beneficiation process design and optimization

   • Zircon sand production line equipment selection and configuration program

2. Mid-term Service

   • Zircon sand equipment manufacturing and quality control

   • Installation and commissioning guidance by engineers

   • Operator training

3. After-sales service

   • After-sales service

   • Technical upgrading and remodeling

We have several zircon sand production line project experience, if you need specific zircon sand beneficiation production line plan or zircon sand beneficiation technology consulting, please contact us, we will provide you with customized zircon sand beneficiation plan and quotation suitable for you!
