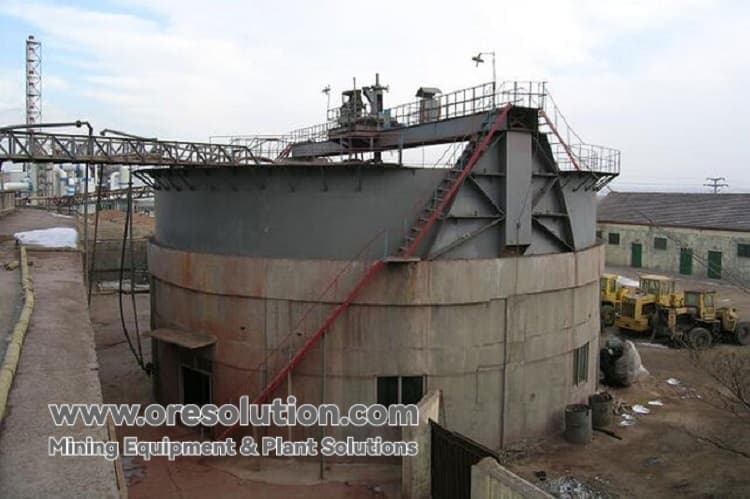

NG type peripheral roller drive thickener

I. Product Overview

NG type peripheral roller drive thickener is a high-efficiency thickening equipment specially designed for large-scale mineral processing plant and sewage treatment plant, adopting unique roller peripheral drive structure, which has the characteristics of large capacity, stable operation, safety and reliability, etc. The diameter of NG type peripheral roller drive thickener equipment ranges from 15 meters to 53 meters, which can meet the solid-liquid separation needs of enterprises of different scales, and is especially suitable for tailings treatment of large-scale mineral processing plant, It is especially suitable for large-scale tailings treatment in mineral processing plants, coal slurry water concentration in coal washing plants and other large flow conditions.

Core Advantages

1. Innovative transmission system

• Roller peripheral drive: overload automatic slip protection, no need for additional safety devices.

• Modularized drive unit: easy maintenance and quick replacement.

• Low friction design: energy consumption is 20-30% lower than traditional structure.

2. Electrical system features

3. Structural design highlights

• Large-diameter concrete pool body: service life of more than 20 years

• Reinforced rake frame structure: strong deformation resistance

• Adjustable scraper: adapt to different concentration of slurry

Technical Parameters

IV. Areas of application

1. Mineral processing industry

• Concentration of copper, iron, gold and other concentrates

• Pre-treatment of large-scale tailing pond backwater system

• Purification and treatment of beneficiation wastewater

2. Coal industry

• Coal washing plant slurry water concentration

• Coal chemical waste water treatment

• Mine water clarification and reuse

3. Environmental Engineering

• Industrial wastewater treatment plant sludge thickening

• Municipal Sewage Treatment Plant Upgrading

• River dredging and dewatering treatment

V. Selection Guide

1. Application in mineral processing plant

• Daily processing capacity ≤1000t ：NG-15～NG-18

• Daily processing capacity 1000-3000t ：NG-24～NG-30

• Daily processing capacity ≥3000t ：NG-45～NG-53

2. Key selection factors

• Material characteristics (specific gravity, particle size, concentration)

• Requirement of processing capacity

• Site conditions

• Requirement of automation degree

Installation and maintenance

1. Installation points

• Concrete pool body maintenance period ≥ 28 days

• Peripheral track level deviation ≤3mm

• Roller and track contact area ≥ 80%

2. Maintenance

• Daily inspection:

  • Daily check roller wear

  • Weekly cleaning track debris

• Regular maintenance:

  • Monthly check for cable wear

  • Change reducer lubricant annually

Seven, service support

• On-site guidance: professional engineers installation and commissioning

• Operation training: free system training

• Spare parts supply: key components such as drive units are always available.

• Modification and upgrading: traditional thickener drive system modification

NG type peripheral roller drive thickener has become the preferred equipment for large-scale mineral processing and sewage treatment projects due to its advantages of large processing capacity, high reliability and low maintenance cost. We can provide customized solutions according to your specific needs.
