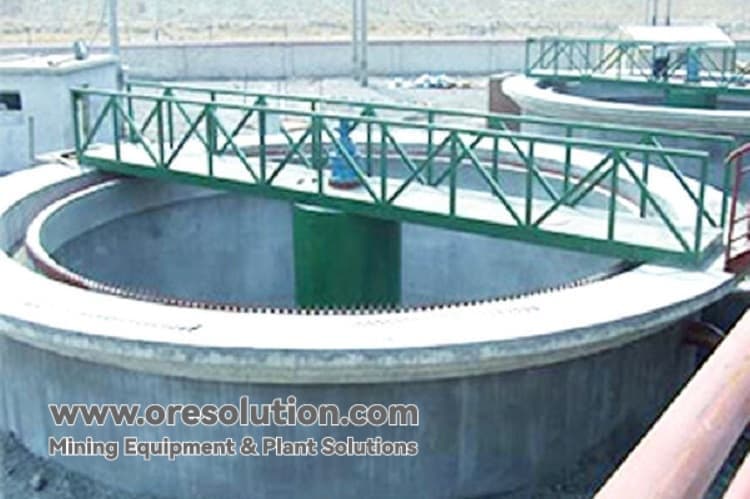

Center Drive Concentrator-NZ(S) Type Center Drive Concentrator Equipment

I. Product Overview

NZ(S) type (TNZ type) center drive thickener is a new generation of continuous working thickening and clarifying equipment, adopting center drive and automatic rake lifting technology, which is widely used in solid-liquid separation operation in mineral processing, coal, chemical industry, environmental protection, etc. The center drive thickener has the features of large capacity, stable operation, easy maintenance, etc. It is the ideal thickener for modern industrial production. The center drive thickener has the features of large capacity, stable operation and easy maintenance, which is the ideal solution for thickening and dewatering in modern industrial production.

Product features

1. High-efficiency thickening system

• Center drive structure: high torque and low energy consumption.

• Intelligent rake lifting device:

  • ≤ Φ12m model: manual rake lifting

  • ＞Φ12m model: electric rake lifting + overload protection

• Special rake teeth design: anti-seize, anti-siltation

2. Structural design advantages

3. Safety Protection System

• Overload automatic alarm device

• Emergency stop protection

• Rake height indicator

Technical Parameters

Fourth, the application field

1. Mineral processing industry

• Concentrate concentration: copper, iron, gold and other concentrate dewatering

• Tailings treatment: Tailings slurry concentration back to the use of water

2. Coal industry

• Coal mud water treatment

• Coal washing wastewater clarification

3. environmental engineering

• Industrial wastewater treatment

• Municipal sludge thickening

V. Selection Guide

1. Application in mineral processing plant

• Small-scale processing plant: NZ-6～NZ-12

• Medium-sized processing plant: NZ-18～NZ-24

• Large-scale processing plant: NZ-30 and above

2. Coal industry

• Recommended NZ-12～NZ-18 electric rake type

• Matching automatic dosing system

3. Sewage treatment

• Need to configure the inclined tube / inclined plate packing

• Recommended choice of concrete pool body

Sixth, service support

• Technical Consultation: Free process program design

• Installation guidance: professional engineers on-site service

• Spare parts supply: provide original spare parts for quick replacement.

• Equipment modification: upgrade service for old type thickener

NZ(S) type center drive thickener has become an important equipment for solid-liquid separation in various industries with its high efficient dewatering performance, stable operation performance and convenient maintenance characteristics. We can provide optimal center drive thickening solutions according to your specific processing needs.
