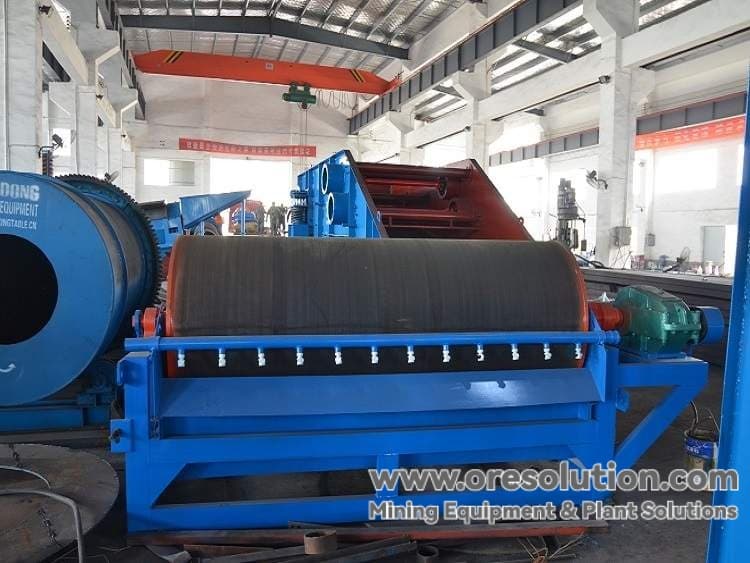

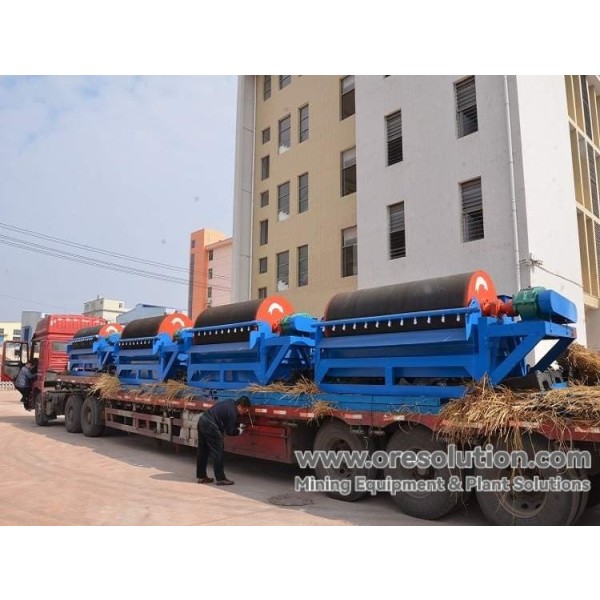

Wet Magnetic Separator-CTS(N.B) Series Permanent Magnetic Wet Magnetic Separator Equipment

I. Product Overview

CTS(N.B) Series Permanent Magnetic Wet Magnetic Separator is a professional equipment designed for wet sorting of fine-grained strong magnetic minerals. It adopts high-performance rare-earth permanent magnetic material to build magnetic system, which has the features of stable magnetic field, high sorting efficiency and strong adaptability. This machine is widely used in the selection and purification of iron ore, manganese ore and other strong magnetic minerals, as well as quartz sand, feldspar and other non-metallic minerals to remove iron purification.

Product series and tank type

1. Magnetic system structure type

2. Tank type and application range

Technical Features

1. High performance magnetic system

   • Adopting NdFeB permanent magnetic material, the surface magnetic field strength can reach 1500-6000GS.

   • Computer optimized magnetic circuit design, reasonable magnetic field gradient.

   • Ten-year decay rate of magnetic performance <3%.

2. Intelligent sorting control

   • Cylinder speed is stepless adjustable (10-50rpm).

   • Precise control of slurry flow

   • Optional automatic flushing system

3. Durable structure design

   • Stainless steel or wear-resistant rubber covered cylinder

   • Tank lining is ultra-high polymer polyethylene.

   • IP54 protection grade for transmission system

Four, technical parameters

V. Selection Guide

1. Iron Ore Selection

   • Recommended CTB type semi-countercurrent tank

   • Magnetic field strength 4000-5000GS

   • Cylinder speed 20-30rpm

2. Quartz sand iron removal

   • Recommended CTN type countercurrent tank

   • Magnetic field strength 3000-4000GS

   • Feeding size <0.3mm

3. Manganese ore roughing

   • Recommended CTS type downflow tank

   • Magnetic field strength 3500-4500GS

   • Processing capacity can be increased by 20%.

Installation and Maintenance

1. Installation points

   • Level deviation of foundation <1/1000

   • Flexible connection is required for inlet and outlet pipes

   • Locking after adjusting the position of magnetic system

2. Daily maintenance

   • Check cylinder wear every shift

   • Monthly inspection of magnetic field strength

   • Regular cleaning of tank deposits

3. Common Troubleshooting

   • Decrease in concentrate grade: check the position of the magnetic system and the amount of flushing water.

   • Abnormal vibration: check bearings, coupling alignment

   • Running slurry: adjust the height of overflow weir

Application Case

1. An iron ore processing plant

   • Equipment model: CTB1050×3000

   • Capacity: 80t/h

   • Effect: TFe grade is increased to 65%.

With its excellent performance and flexible configuration, this series of wet magnetic separator has become the main wet magnetic separation equipment in modern ore dressing plant. Welcome to call us for specific selection program and technical support!
