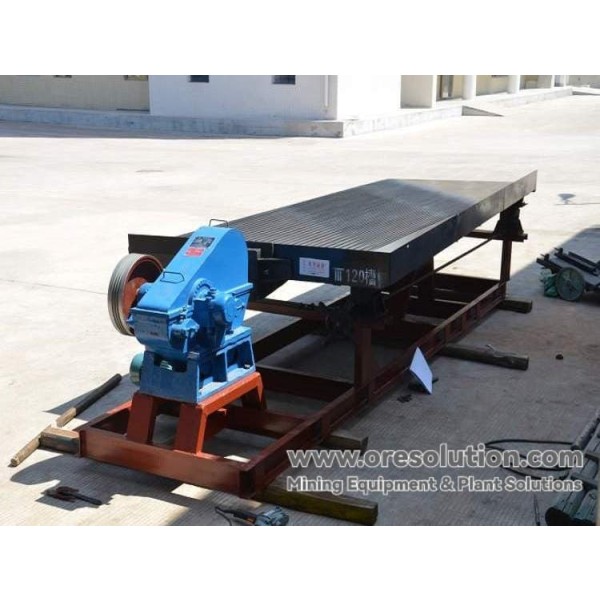

Yunxi-type Shaking Table

Product Overview

Yunnan Tin Shaking Table is a professional re-election equipment innovated and improved by Yunnan Tin Machinery Manufacturing Co., Ltd. based on the Soviet-style CC-2 shaking table, which adopts cam-lever/rocker-arm type bed design, and is famous for its unique multi-slope bed and high-quality wear-resistant layer. The equipment is widely used for sorting minerals such as tin, tungsten, lead, bismuth, titanium, manganese, tantalum, niobium, gold, etc., with a processing size range of 2-0.019mm, which is the benchmark product of heavy separation equipment in China.

Core technology features

Innovative structural design

• Multi-slope bed: longitudinal continuous slope design, optimizing the mineral zoning.

• Modular wear-resistant layer: optional raw paint/fiberglass/polyurethane coating (special for coarse sand/fine sand/mineral sludge)

• Cam lever mechanism: asymmetric motion curve, wide differential adjustment range.

Excellent performance parameters

Six core advantages

1. Military grade durability

   • The bed surface is made of aviation-grade fiberglass or traditional raw paint process, which improves the deformation resistance by 50%.

   • Key components have a lifespan of 100,000 hours

2. Intelligent Motion Control

   • Differential adjustment range is 30% wider than that of traditional equipment.

   • Stroke adjustment accuracy ±0.5mm

3. Precise sorting performance

   • Mineral banding clarity increased by 40

   • -25% increase in recovery rate of 0.074mm fine grains.

4. Environmentally friendly and low-consumption design

   • Fully closed lubrication system, zero oil leakage

   • Energy consumption 15% lower than similar products

5. Convenient maintenance

   • Modularized bed design, local repairable

   • 60% less wearing parts

6. Strong process compatibility

   • Can directly replace 6-S shaking table

   • Support coarse sand/fine sand/sludge full process configuration

Application Solutions

• Tin-tungsten selection: Recovery rate of 0.1-2mm particle size >92%.

• Microfine recovery: -0.074mm sludge special configuration

• Tailings re-election: recovery of rare metals from old tailings

• Teaching and Research: Research on mineral sorting mechanism
