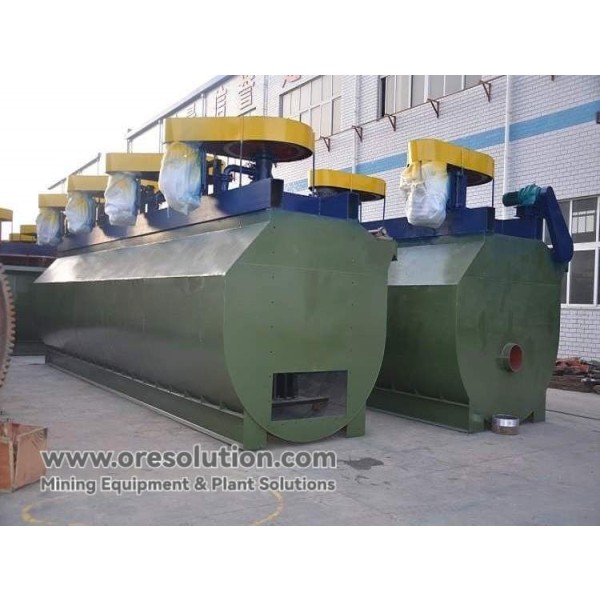

XCF-KYF Type Flotation Machine-Aerated Mechanical Stirring Flotation Machine Equipment

Product Overview

XCF-KYF type flotation unit is a highly efficient and energy-saving flotation solution for modern mineral processing plant, which consists of XCF type (self-absorbing pulp) and KYF type (DC) flotation machine. The unit adopts the innovative "U"-shaped tank and large-diameter cone impeller design, realizing the simple flow with horizontal configuration and no froth pump, with the significant advantages of large processing capacity, low energy consumption and low consumption of chemicals, which is the ideal choice for the roughing and sweeping operation of large-scale ore dressing plants.

Product Features

XCF-KYF flotation unit is designed with optimized impeller structure and air dispersing system to ensure high recovery rate while significantly reducing the operating cost.XCF type as suction tank can self-absorb the slurry, and KYF type as DC tank to realize the horizontal configuration, and the two work in concert to form a high-efficiency flotation circuit. The unique design of short blade rotor and intermediate air disperser makes the air bubbles disperse more evenly and the pulp mix more fully, which significantly improves the separation efficiency.

Working Principle

1. Slurry inhalation: XCF self-priming slurry enters the system.

2. Air slurry mixing:

   • Large diameter cone impeller strong mixing

   • Intermediate air disperser evenly distributes air

3. Mineral separation:

   • Hydrophobic minerals float with air bubbles.

   • Hydrophilic minerals remain in the slurry

4. Slurry flow: Horizontal conveying by KYF type direct flow chute

5. Foam collection: Scraper discharges mineralized foam

Core Advantages

Structural Advantages

• "U-shape trough design, anti-mineral accumulation

• Cone impeller + short blade rotor, less wear and tear

• Horizontal configuration, no foam pump required

Performance Advantages

• 30-50% energy saving

• 10-15% savings in chemicals

• Large treatment capacity, high recovery rate

Technical Parameters

Application field

• Large-scale mineral processing plant: copper, lead, zinc ore rough sweep separation

• Bulk minerals: iron ore, phosphorus ore sorting

• Non-metallic minerals: fluorite, barite sorting

• Precious metals: gold and silver ore flotation

Professional Services

We provide XCF-KYF type flotation machine users:

• Configuration: Optimize the proportion of XCF/KYF.

• Installation and commissioning: on-site guidance by professional engineers

• Energy saving assessment: provide energy consumption optimization solutions

• Parts supply: original impeller and wear parts

XCF-KYF type flotation unit has become the standard configuration of modern large-scale mineral processing plant for its excellent energy-saving performance and efficient separation effect. We are committed to continuously providing innovative technical products and professional service support to help users maximize the benefits of mineral processing. Choosing our flotation unit is choosing the energy efficient beneficiation solution and perfect service guarantee system.
