Integrated Solution for Sorting, Treatment and Resource Utilization of Sulfur-Containing Slag

Sulfur slag sorting treatment and resource utilization overall solution

Sulfur slag sorting process, sulfuric acid slag treatment program, sulfur slag comprehensive utilization solutions

1. Program Overview

This solution for the chemical industry produces sulfur slag (sulfuric acid slag) characteristics, to provide specialized sulfur slag sorting treatment and resource utilization of the overall solution. Sulfur slag is the solid waste produced in the process of sulfuric iron ore acid production, containing rich iron resources and other valuable components. Through the scientific design of sulfur slag treatment process, the iron minerals can be efficiently recovered, and realize the resource utilization of tailings, creating economic and environmental benefits.

2. Characterization of raw materials

Sulfur slag iron element mainly exists in the form of iron oxide, according to the different degrees of sintering can be divided into three categories:

• Peroxide sulfate slag: reddish brown, mainly containing hematite

• Normal sulfuric acid slag: iron black, hematite and magnetite content is equal

• Under-oxygenated sulfuric acid slag: iron black, mainly containing magnetite

Different properties of sulfur slag need to use different separation process, in order to achieve the ideal recovery results.

3. Sulfur slag separation process design

Raw material pretreatment
Sulfur slag raw materials → uniform feed → crushing and screening → particle size classification

Sorting process selection

• Hematite-based: gravity separation process (jig separation)

• Hematite + magnetite: gravity separation - magnetic separation joint process

• Magnetite-based: direct magnetic separation process

Core Separation System

• Crushing and screening: to realize material dissociation and particle size control

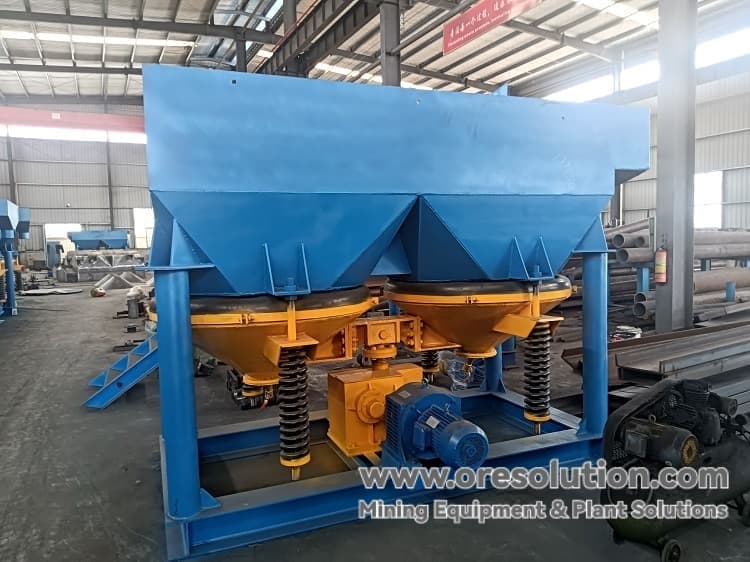

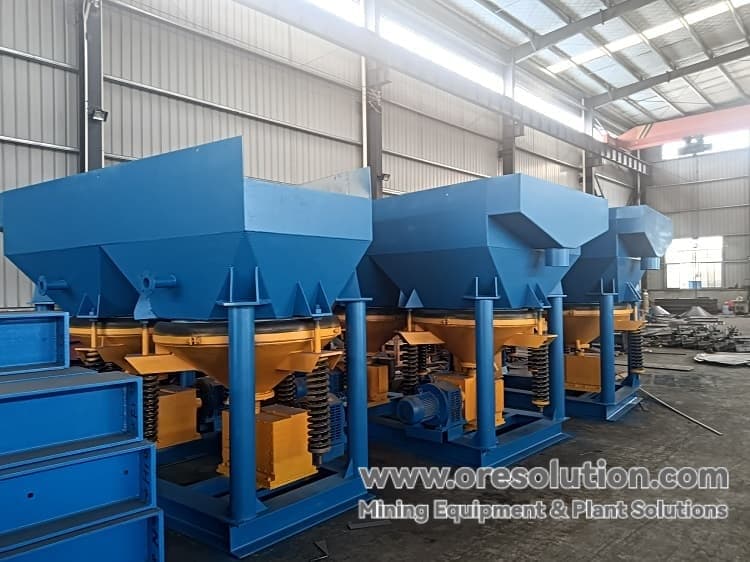

• Jigging separation: utilizing density difference to recover iron minerals

• Magnetic separation: efficient recovery of magnetic iron minerals

• Dewatering and drying: product moisture control

Tailings Treatment System

• Tailings Classification: Classification according to particle size

• Resource utilization: building materials or landfill disposal

4. Sulfur slag treatment technology features

Process advantages

• Wide adaptability: according to the characteristics of the raw materials can be flexibly selected sulfur slag sorting process route

• High recovery rate: iron recovery rate of up to 85% or more

• Stable product quality: 56-61% iron ore concentrate grade

• Low operating costs: gravity separation process has low energy consumption and obvious advantages in operating costs.

Equipment features

• Specialized equipment: special sorting equipment designed for the characteristics of sulfur slag

• Wear-resistant design: key components are made of wear-resistant materials, long service life.

Environmental performance

• Water recycling: waste water recycling is realized

• No chemical additives: physical sorting, environmentally friendly

5. sorting effect indicators

Product quality index

• Iron ore concentrate grade: 56-61%

• Iron recovery rate: 85-92

• Processing capacity: customized according to demand (5-200 tons/hour)

6. Resource utilization of waste residue after sorting

Application in the field of building materials

• Cement raw materials: as iron correction raw materials, instead of traditional iron powder

• Concrete Admixture: Improve the performance of concrete and reduce the cost.

• Road base material: used in road base filling, stable performance

• Raw material for brick making: produce environmentally friendly bricks to meet the demand for construction.

Other utilization directions

• Soil conditioner: used to improve acidic soil.

• Trace element fertilizer: Provide trace elements for plant growth.

• Industrial filler: used in paint, plastics and other industries

Wecan provide sulfur slag sorting after the tailings of resource utilization technology and the overall program toachieve100% sulfur slag resource utilization rate, slag solid waste0 landfill.

7. Economic benefit analysis

Investment benefits

• Sulfur slag treatment equipment investment: customized according to the scale of treatment

• Payback period: short

Source of income

• Iron ore concentrate sales: the main source of income

• Tailings utilization: additional revenue

• Disposal cost savings: reduce solid waste disposal costs

• Policy subsidies: tax incentives for comprehensive utilization of resources

8. Environmental benefits

Resource saving

• Reduce natural iron ore mining, save land resources, reduce energy consumption

Environmental Protection

• Reduce solid waste stockpiling, reduce environmental pollution, reduce carbon emissions

Circular Economy

• Realize waste resource utilization, promote the development of circular economy, and meet the requirements of sustainable development.

9. Service Support

Technical Support

• Raw material testing and analysis

• Sulfur slag treatment program design, site planning, drawing design

• Sulfur slag sorting equipment selection and configuration

Engineering services

• Engineer door-to-door guidance sulfur slag equipment installation and commissioning

• Operator training

After-sales guarantee

• Equipment warranty service

• Spare parts supply guarantee

10. Sulfur slag treatment program configuration

Program A (metal recovery type)

Focusing on the maximization of iron metal recovery, the investment is relatively concentrated and the return cycle is short. The program adopts the mature gravity separation - magnetic separation joint process, for the sulfur slag in the iron mineral characteristics of efficient recovery, is currently the mainstream sulfur slag treatment.

Recommended reason:

• Fast investment recovery, significant economic benefits

• Mature and stable process, reliable operation

• Adapt to different nature of sulfur slag raw materials

• According to the characteristics of raw materials can be flexibly adjusted process parameters

Scheme B (comprehensive utilization type)

On the basis of Scheme A, add the tailings deep processing system, to achieve the dual objectives of "metal recovery + tailings resource utilization". It not only produces high quality iron ore concentrate, but also processes the tailings into building materials (such as cement raw materials, road base materials, environmental protection bricks, etc.), realizing the full quantitative utilization of sulfur slag and maximizing the comprehensive benefits.

Program Advantage:

• Resource utilization rate reaches 100%

• Create multiple revenue channels

• Completely realize the zero discharge of solid waste

• Meet the requirements of circular economy development

• Enjoy the comprehensive utilization of resources policy support

Choice Recommendation:

• For customers with limited investment budget or mainly focusing on metal recycling, Program A is recommended.

• For enterprises pursuing comprehensive benefits and focusing on environmental protection requirements, Program B is recommended.

• Can take step-by-step implementation strategy, first build program A, later upgrade to program B as needed

Both sulfur slag treatment program adopts modular design, according to the characteristics of raw materials, treatment scale and investment budget for personalized configuration, to ensure the best sulfur slag treatment technology and economic indicators.

Sulfur slag (sulfuric acid slag) sorting and treatment process and resource comprehensive utilization of the program

Sulfur slag sorting treatment and resource utilization program through the scientific sorting process and efficient resource utilization, to achieve the chemical solid waste "waste to treasure". The sulfur residue treatment program not only solves the problem of solid waste disposal, but also creates significant economic and environmental benefits, is an effective way to achieve green development of the chemical industry. The program can provide a single sorting or sorting + resource utilization of sulfur residue treatment solutions to meet different investment budgets and processing requirements.
