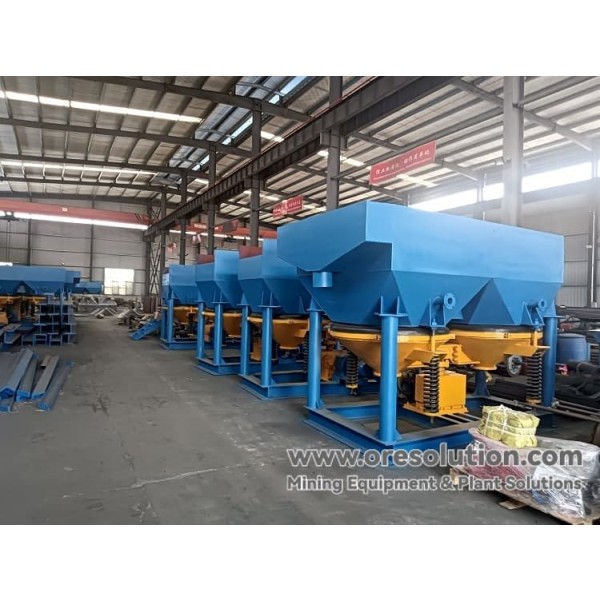

Diamond Alluvial Ore Beneficiation Production Line and Process Solution

Diamond Washing Production Line, Diamond Alluvial Beneficiation Process, Diamond Beneficiation Equipment

Process Overview

Diamond alluvial beneficiation production line adopts the mature "washing-screening-jigging-oil separation" process route, especially designed for river alluvial and seaside diamond alluvial ores. This diamond washing production line is designed to realize high recovery rate of diamonds through multi-stage sorting and selecting process, while ensuring the integrity of diamond crystals.

Diamond Alluvial Ore Beneficiation Process

1. Washing and screening system

   • Rotary scrubber: removes clay and surface adherents

   • Vibrating Screen: Classifies into four grades: +10mm, 10-5mm, 5-2mm, 2-0.5mm.

2. Jigging Roughing System

   • 0-10mm jigger: processing fine-grained materials

   • 0-30mm jigger: processing coarse-grained materials

   • Each jigger produces rough concentrate and tailings.

3. Oleomargarine Concentration System

   • Vibrating Oil Paste Concentrator: Processes jigged rough concentrate

   • Produce final diamond concentrate and tailings

Diamond Washing Production Line Main Equipment Configuration

Diamond Production Line Technical Advantages

1. High recovery rate

   • Multi-stage sorting process ensures the recovery rate >95%.

   • Adapt to 0.5-30mm full grain size recovery

2. Crystal protection

   • Gentle treatment process

   • Specialized anti-damage equipment design

3. Economical and environmentally friendly

   • No chemical additives

   • Water recycling rate >85%.

   • Oil paste can be reused

Typical technical indicators

Technical service

1. Preliminary services

   • Diamond beneficiation process design

   • Diamond beneficiation equipment selection and configuration

2. Mid-term Service

   • Diamond washing production line equipment manufacturing and supply

   • Installation and commissioning guidance

   • Operation training

3. Later Service

   • Process optimization and upgrading

   • Equipment maintenance

   • Technical consulting service

We can provide customized diamond alluvial beneficiation production lines and process solutions according to the characteristics of different diamond alluvial ores (particle size distribution, associated minerals, etc.) to ensure the best economic benefits and diamond recovery rate.
