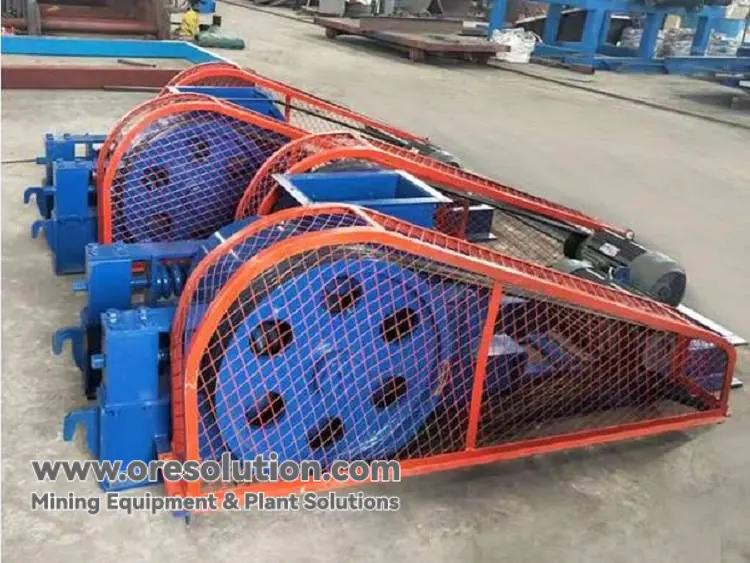

Double Roll Crusher (Fine Crushing Expert)

The Double Roll Crusher (or 2-Roll Crusher) is designed for fine crushing of medium-hard and soft materials (Compressive strength ≤ 300MPa) such as Coal, Coke, Limestone, and Clinker.

OreSolution's Roll Crusher excels in precise particle size control. By adjusting the gap between the two rollers, you can get exact output sizes (e.g., <3mm) with minimal dust and over-crushing.

Working Principle: Extrusion & Shear

The material is crushed by high-pressure squeezing between two counter-rotating rollers.

Feeding

Material enters the V-shaped crushing chamber formed by two rollers. The friction force draws the material down into the gap.

Extrusion

As the rollers rotate towards each other, the material is subjected to immense pressure (up to 200MPa) and shearing force , breaking it instantly.

Discharge

Crushed particles fall through the gap. By adjusting the wedge or hydraulic device, you can strictly control the final size (e.g., 2-10mm).

Structure of Double Roll Crusher

Technical Choice: Smooth vs. Toothed Roll

We provide two types of rollers to suit different material properties:

Feature	Smooth Roll (Flat)	Toothed Roll (Surfaced)
Surface	Smooth alloy steel surface.	Surface with teeth or grooves.
Main Force	Extrusion (Squeezing).	Splitting & Shearing.
Application	Hard/Medium Hard (Ore, Clinker).	Soft/Brittle (Coal, Coke, Salt).
Product Size	Very Fine (<3mm).	Coarse/Medium (10-30mm).

Core Advantages

1. Less Dust & Noise

Compared to Hammer Crushers, the low-speed extrusion principle generates significantly less dust, making it eco-friendly for indoor plants.

2. Wear-Resistant Roller Skin

Our roller skins are made of High Manganese Alloy Steel, which is replaceable and durable, reducing the long-term maintenance cost.

3. Adjustable Gap

Equipped with a wedge or hydraulic adjustment device, allowing operators to change the discharge gap safely and easily within minutes.

Double Roll Crusher Installation Site

Typical Applications

● Coal Preparation:
Fine crushing of Coal and Coke for power plants.
● Cement Industry:
Pre-crushing Clinker and Limestone before the Ball Mill.
● Metallurgy:
Crushing Iron Ore fines and Sinter.
● Fertilizer & Chemicals:
Granulating Potash, Salt, and Phosphate.

Technical Parameters

1. Flat Roll Face (Fine Crushing)

Parameter	Range / Value
Feed Size	≤ 80 mm
Discharge Size	0.3 - 20 mm (Adjustable)
Capacity	5 - 110 t/h
Motor Power	7.5 - 132 kW

2. Surfaced (Toothed) Roll (Coarse Crushing)

Parameter	Range / Value
Feed Size	≤ 110 mm
Discharge Size	3 - 30 mm
Capacity	10 - 150 t/h
Motor Power	11 - 160 kW

Full Lifecycle Support

1. Selection Guidance
Helping you choose between Smooth or Toothed rollers.

2. Installation
On-site commissioning to ensure balanced roller speed.

3. Operation Training
Training on how to adjust the discharge gap safely.

4. Spare Parts
Quick supply of wear-resistant roller covers (skins).

Frequently Asked Questions (FAQ)

Q: Can I use it for wet materials?

A: Yes, but with caution. For sticky wet materials, we recommend installing scrapers on the rollers to prevent clogging. It works best for materials with moisture content < 15%.

Q: What is the lifespan of the roller skin?

A: It depends on the material hardness. For medium hard ores, high manganese steel roller skins typically last 6-12 months. Regular maintenance is key to extending life.
