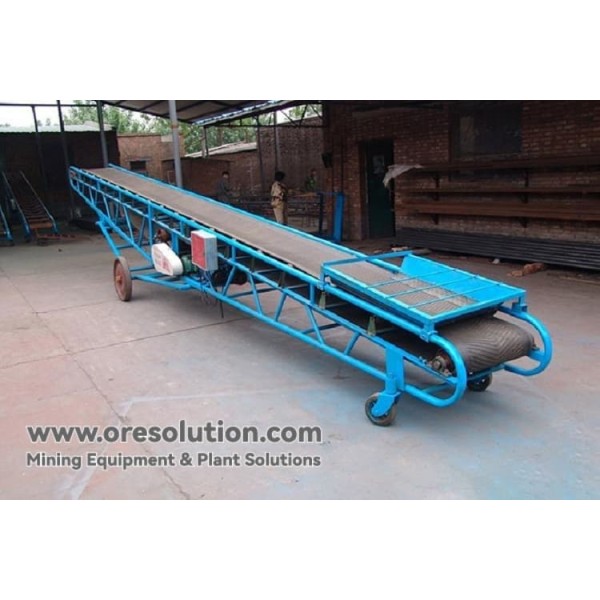

Belt Conveyor

⏰ 24/7 Online · Free Consultation!

📞 +86 199 1475 4015 (WeChat/WhatsApp)

Submit your inquiry now to receive a customized solution and quote!

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Product Details

Mining Belt Conveyor

The Belt Conveyor is the lifeline of any mining or aggregate plant. It provides continuous, high-capacity transport of bulk materials like ore, coal, and sand over long distances.

Our B-Series conveyors are designed for heavy-duty applications, connecting Crushers, Screens, and Stockpiles in a seamless system. Available in widths from 500mm to 1200mm.

Working Principle: Friction Drive

Moving tons of material using friction between the drum and the belt.

Drive

The electric motor drives the Head Pulley (Drive Drum). The friction between the rubber surface of the pulley and the conveyor belt pulls the belt forward.

Carrying

The belt runs on "Trough Idlers" (V-shape rollers) which cup the belt to hold more material and prevent spillage.

Tensioning

A screw take-up or gravity weight at the tail keeps the belt tight, ensuring sufficient friction at the drive pulley to prevent slipping.

Mining Belt Conveyor Structure

Technical Choice: Belt Conveyor vs. Screw Conveyor

Which conveying method suits your material?

Feature	Belt Conveyor	Screw Conveyor
Distance	Long (Up to km).	Short (< 30m).
Material Size	Large Lumps & Fines.	Powder & Small Granules.
Capacity	Very High.	Low to Medium.
Wear	Low (Rubber belt).	High (Metal on Metal).

Core Advantages

1. High Capacity

Depending on belt width and speed, capacity ranges from 78 t/h to 1200 t/h. Suitable for massive throughput in quarries.

2. Flexible Layout

Can be installed horizontally or inclined (up to 18-20 degrees). We can combine multiple units to navigate complex terrain.

3. Durable Components

Uses high-quality multi-ply rubber belts (Canvas/Nylon/Steel Cord) and sealed idler rollers for long service life in dusty environments.

Typical Applications

● Stone Crushing Plant:
Connecting Jaw Crusher, Impact Crusher, and Vibrating Screens.
● Mineral Processing:
Feeding ore to the Ball Mill or transporting tailings to the dump site.
● Stockpiling:
Creating large cone stockpiles of finished aggregates or sand.
● Bulk Handling:
Transporting coal, fertilizer, grain, and cement clinker.

Technical Parameters (B Series)

Model (Width mm)	Speed (m/s)	Capacity (t/h)	Length (m)	Power (kW)
B-500	1.3 - 1.6	78 - 191	≤12	3.0
			12 - 20	4.0 - 5.5
			20 - 30	5.5 - 7.5
B-650	1.3 - 1.6	131 - 323	≤12	4.0
			12 - 20	5.5
			20 - 30	7.5 - 11
B-800	1.3 - 2.0	278 - 546	≤10	5.5
			10 - 20	7.5 - 11
			20 - 40	11 - 22
B-1000	1.3 - 2.0	435 - 853	≤10	7.5
B-1200	1.3 - 2.0	655 - 1284	≤10	7.5

Inclined Belt Conveyor System

Frequently Asked Questions (FAQ)

Q: What is the maximum inclination angle?

A: For standard belts and common materials (stone, ore), the max angle is 18-20 degrees. If you need steeper angles, you need a Chevron (Patterned) Belt or Sidewall Belt.

Q: How do I choose the belt width?

A: It depends on your required Capacity (t/h) and Max Lump Size. A wider belt can carry more material and larger stones without spillage. Refer to the table above.

Q: Do you supply covers or walkways?

A: Yes. We can provide rain covers (hoods) for outdoor conveyors and maintenance walkways with handrails upon request.

Reliable Material Transport

Build an efficient plant connection with OreSolution Belt Conveyors.
Contact us for custom length design and belt selection.
