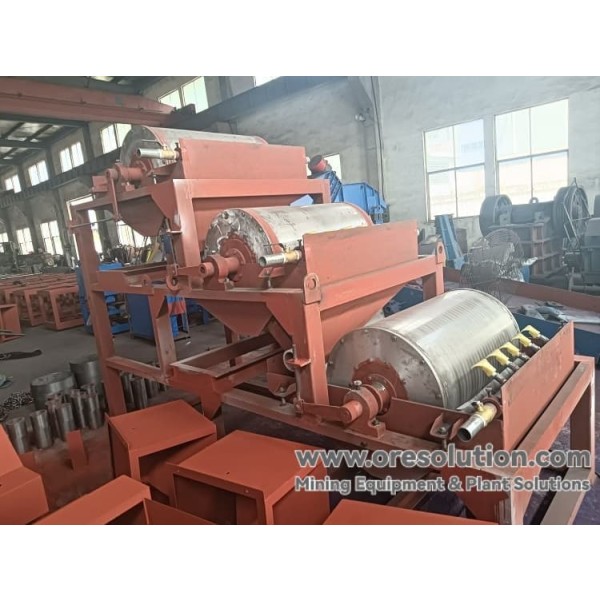

Wet Titanium Ore Permanent Magnet Machine - Wet Permanent Magnet Cylinder Magnetic Separation Equipment

Product Overview

Wet Titanium Ore Permanent Magnetic Machine/Wet Permanent Magnetic Cylinder Magnetic Separator is a wet beneficiation equipment specially designed for the separation of fine-grained strong magnetic minerals, adopting high-performance permanent magnet magnetic system and optimized tank structure, which can efficiently separate magnetic minerals of 0-6mm particle size. This equipment is especially suitable for wet separation of ilmenite, magnetite and other minerals, as well as non-metallic minerals, iron removal and purification operations, it is one of the core sorting equipment for mineral processing plant and coal processing plant.

Core structure

Magnetic system

• Permanent magnet material: Neodymium iron boron (NdFeB) permanent magnet.

• Magnetic Pole Arrangement: Computer optimized multi-pole magnetic system.

• Surface Magnetic Strength: 1200-9000GS (customizable)

Technical Parameters

Basic parameters

Working Principle

1. Slurry feeding: the slurry enters the sorting tank evenly after adjusting the slurry.

2. Magnetic adsorption:

   • Strong magnetic minerals are adsorbed on the surface of the drum.

   • Non-magnetic minerals are discharged with the ore flow

3. Concentrate stripping:

   • Magnetic minerals are taken out of the magnetic field area

   • Flushed into the concentrate tank by rinse water

4. Product separation:

   • Concentrate: Magnetic product

   • Tailings: Non-magnetic product

Key component life

• Drum wear layer: 3-5 years

• Magnetic system: more than 10 years magnetic strength decay ≤ 5%

• Transmission system: 5-8 years

Wet Titanium Ore Permanent Magnetic Machine / Wet Permanent Magnetic Cylinder Magnetic Separator has become the first choice of equipment for the separation of titanium ore and other weak magnetic minerals by virtue of its stable sorting performance and low operating cost. The equipment can flexibly select the type of tank and the strength of magnetic system according to the characteristics of minerals, providing users with personalized sorting solutions.
