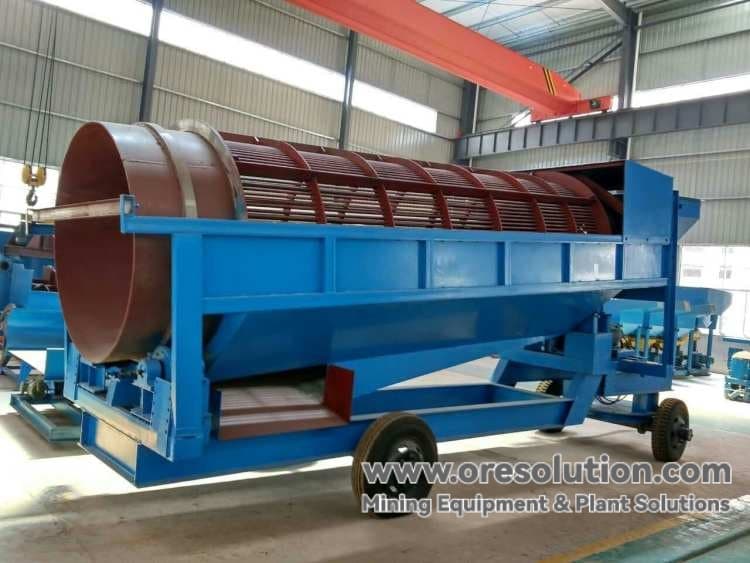

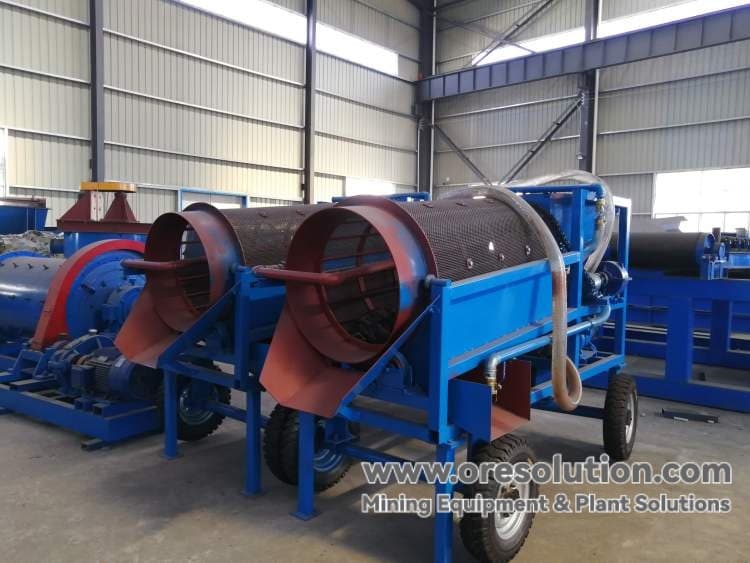

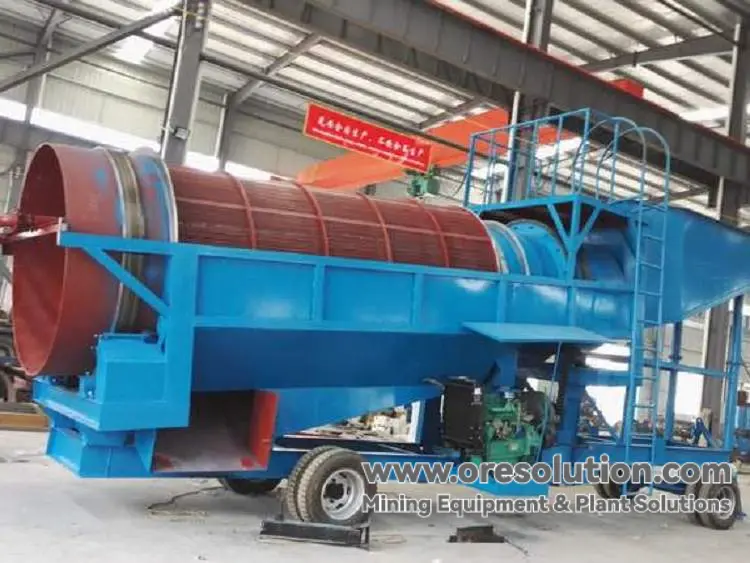

Mobile Trommel Screen - Alluvial Gold Ore High Efficiency Motorized Beneficiation Equipment

Product Core Value

This equipment is an integrated mobile beneficiation system designed for alluvial gold mines, integrating the functions of screening, washing and recovery, with three core advantages of rapid transit, flexible operation and fast return on investment, especially suitable for small and medium-sized alluvial gold mines, river gold panning and other scenarios that require frequent mobile operations.

Innovative Design

Modularized mobile platform

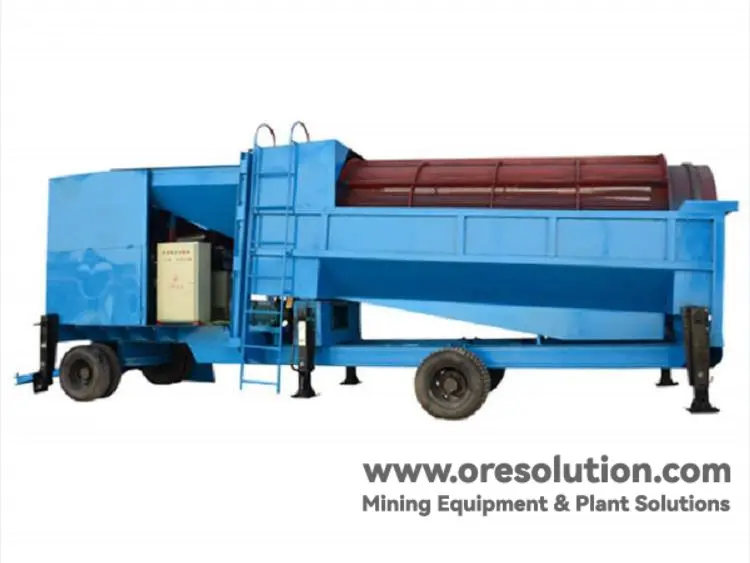

• Heavy-duty chassis system: 6-tire design (180° steering of front wheel) + 4 hydraulic outriggers, adapting to complex terrain.

• Dual power options: diesel direct drive/generator power supply modes, worry-free field operation.

• Quick-folding structure: transportation/working status changeover in 30 minutes.

Intelligent sorting system

• Double-layer composite drum (heavy-duty version): inner screen bar buffer + outer high manganese steel screen, life expectancy increased by 3 times.

• Dynamic gold sticking device: polyethylene non-woven cloth gold sticking blanket, -0.1mm fine gold recovery rate >85%.

• Self-cleaning water circuit: high-pressure water pump with adjustable spraying system, eliminating screen clogging.

Technical Parameters

Five competitive advantages

1. King of maneuvering

   • Turning speed>5km/h, hydraulic outriggers complete leveling in 3 minutes.

   • Passability far exceeds that of stationary equipment, and it can still work in the rainy season.

2. Gold Hunter

   • Sticky gold blanket + trommel screen dual recovery system, comprehensive recovery rate increased by 40%.

   • Equipped with gold selection chute module (optional)

3. Durable

   • Cylinder body is welded with military-grade manganese steel, which improves the impact resistance by 50%.

   • IP67 protection for key components

4. Intelligent control

   • Frequency conversion speed control drum, adapting to different mud content.

   • Dual-mode oil pressure/electricity monitoring system

5. Value-added investment

   • Cost recovery in 3-6 months

   • Modular design, centrifuge components can be upgraded at a later stage

Application Scenarios

• River gold panning: rapid transfer of the working surface during the rainy season.

• Alluvial gold exploration: synchronized with the progress of exploration

• Tailings re-processing: Recovery of sporadic resources from old mining areas.

• Emergency gold mining: rush mining of flood alluvial gold
