Gemstone Alluvial Ore Beneficiation Production Line and Process Solution

Process Overview

Gemstone Alluvial Ore Beneficiation Production Line adopts the mature "Washing-Screening-Gravity Separation" process route, especially designed for ruby, sapphire, garnet and other precious gemstone alluvial ores. This gemstone beneficiation production line is designed to realize the efficient recovery of high grade gemstones on the premise of ensuring the integrity of gemstone crystals through multi-stage sorting and selection process.

Core Process Flow

1. Washing and Screening System

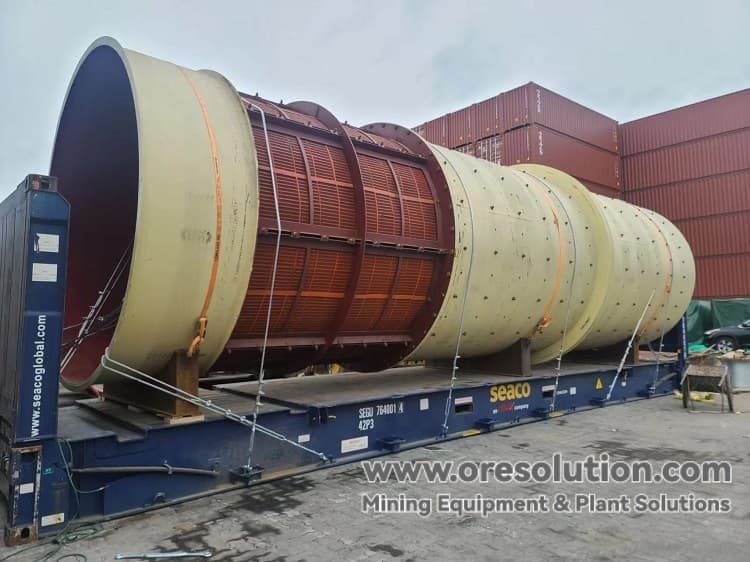

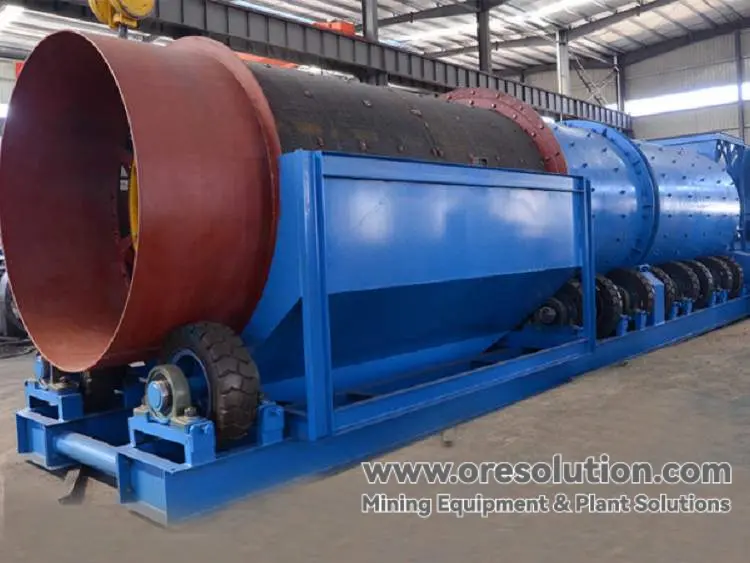

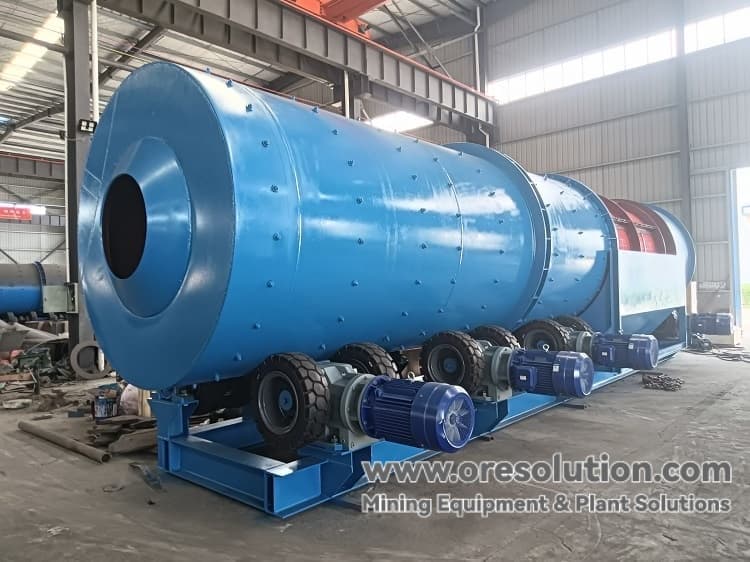

   • Rotary scrubber/tumbler screen: removes clay and surface adherents

   • Vibrating Screen: Classification into four grades: +5mm, 5-2mm, 2-0.5mm, -0.5mm.

2. Gravity enrichment system

   • Jigger: processing 5-0.5mm particle size, preliminary enrichment of gemstones

   • Spiral concentrator: processing -0.5mm fine-grained materials

3. Selection and purification system

   • Shaking Table Concentration: Improve the grade of rough concentrate.

   • Optical sorting machine: new type of gemstone sorting equipment, purity can reach more than 98%.

   • Vibrating Oil Paste Concentrator: Improve the grade of rough concentrate.

Main Equipment Configuration

Advantageous Features of Gemstone Sand Ore Beneficiation Process

High-efficiency recovery system

• Segmented crushing + stage jigging to ensure early and high recovery

• The recovery rate of oil paste selection can be more than 95%.

• Adapt to the recovery of 0.5-30mm full grain size

Economical and practical

• Low running cost of jigger

• Oleum beneficiation equipment investment saving

• Energy consumption is only 1/3 of heavy media beneficiation.

Stable and reliable

• Simple structure and low failure rate

• Easy operation and maintenance

• Adapt to all kinds of gemstone deposits

Environmentally friendly

• No chemical additives

• Recycling of washing water

• Reusable grease

Technical Service

Program Design

• Gemstone beneficiation process design

• Gemstone beneficiation equipment selection and configuration

• Gemstone sand ore production line plant planning, drawing design

Production Support

• Gemstone equipment production and supply

• Gemstone beneficiation production line on-site installation and commissioning guidance

• Operation training, staff training

For more detailed technical support of gemstone alluvial beneficiation or gemstone production line equipment selection, please contact us to provide you with professional gemstone beneficiation program and quotation!
